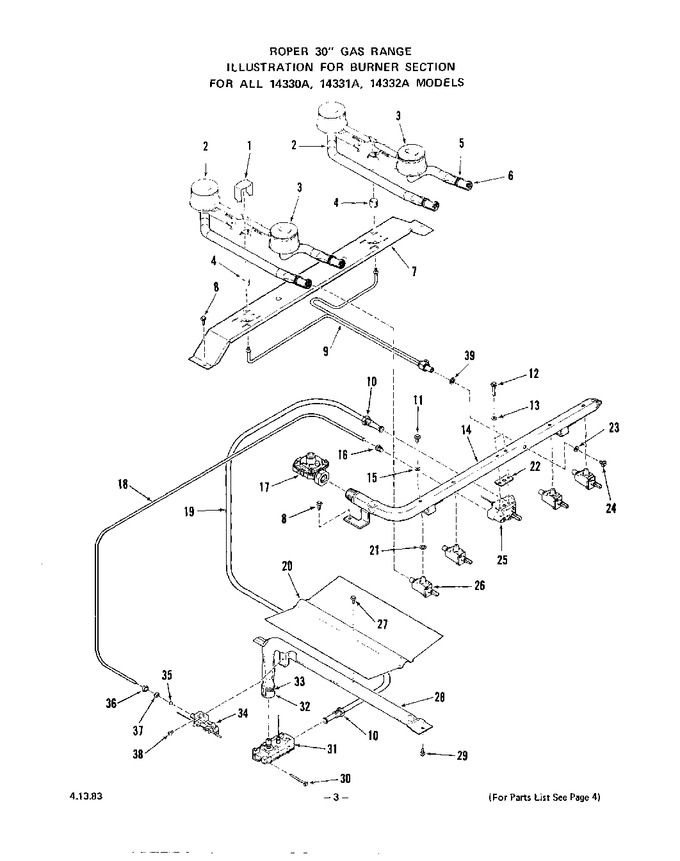

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296183		Shield-top Pilot (lt. Or Rt.)		Appelez-nous	-
2	310197		Rear Top Burner (inc`s 5 & 6)		Appelez-nous	-
3	310196		Front Top Burner (inc`s 5 & 6)		Appelez-nous	-
4	308292		Cup-pilot		Appelez-nous	-
5	301911		Adjustment Screw-air Shutter		Appelez-nous	-
6	301910		Air Shutter		Appelez-nous	-
7	308297		Support-top Burner		Appelez-nous	-
8	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
9	323912		Pilot W/filter		Appelez-nous	-
10	113384		Inverted Nut 3/8``		Appelez-nous	-
11	311455		Mounting Screw (inc`s 15)		Appelez-nous	-
12	318478		Mounting Screw (inc`s 13)		Appelez-nous	-
13	318658		Gasket		Appelez-nous	-
14	323468		Manifold Pipe		Appelez-nous	-
15	304241		Gasket		Appelez-nous	-
16	79673		Loxit Nut 3/16``		Appelez-nous	-
17	324529		Pressure Regulator		Appelez-nous	-
18	322446		Tubing 3/16``		Appelez-nous	-
19	295037		Tubing 3/8``		Appelez-nous	-
20	302729		Baffle - Oven Burner		Appelez-nous	-
21	313563		Silicone Rubber Gasket (for 26)		Appelez-nous	-
22	318657		Silicone Rubber Gasket (for 25)		Appelez-nous	-
23	323915		Gasket		Appelez-nous	-
24	323914		Mounting Screw (inc`s 23)		Appelez-nous	-
25	324757		Oven Thermostat (inc`s 22)		Appelez-nous	-
26	318479		Gas Valve-4 Req. (inc`s 11, 15, 21)		Appelez-nous	-
27	316365		Screw 10-32x7/16``		Appelez-nous	-
28	319255		Oven Burner (inc`s 20, 32, 33)		Appelez-nous	-
29	316365		Screw 10-32x7/16``		Appelez-nous	-
30	323296		Screw 10-32 X 2``		Appelez-nous	-
31	324078		Control Valve (inc`s 34, 35)		Appelez-nous	-
32	312988		Air Shutter		Appelez-nous	-
33	312989		Adjustment Screw -air Shutter		Appelez-nous	-
34	318486		Pilot Only (inc`s 35)		Appelez-nous	-
35	318485		Orifice Cup Only (for 34)		Appelez-nous	-
36	65712		Compression Nut 3/16``		Appelez-nous	-
37	65711		Compression Ball Sleeve 3/16``				$ 6.30
38	288248		Screw 10-24x1/4``		Appelez-nous	-
39	323913		Gasket		Appelez-nous	-
