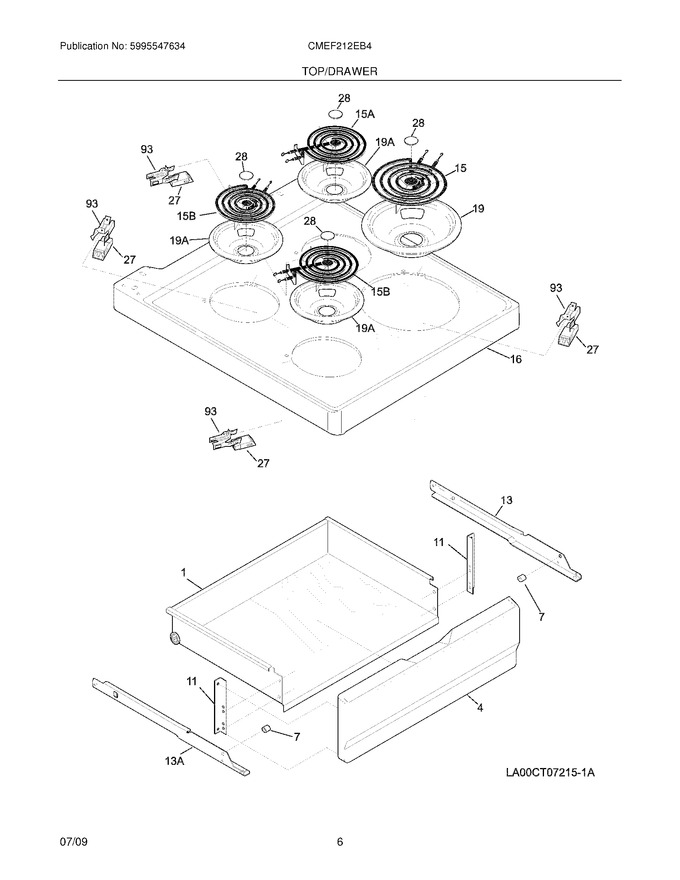

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303325610		Drawer				$ 212.52
4	318044233		Panel,drawer ,black				$ 74.18
7	318014800		Spacer				$ 16.59
11	5303324427		Bracket,drawer Support ,(2)				$ 5.20
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318120923		Main Top,black				$ 150.62
19	A316222301		Pan,surface Element ,large ,black   (Replaces: 318067050)			Immediately	$ 12.53
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
93	5303935058		Support,terminal Block ,(4)   (Replaces: 318366400)			Immediately	$ 13.81
13A	318018101		Channel-drawer,lh				$ 63.11
19A	A316222201		Pan,surface Element ,small ,black   (Replaces: 318067040)			Immediately	$ 14.64
F15	316442303		Element,surface ,8`` ,large   (Replaces: 318372216)			Immediately	$ 207.45
F15A	318372211		Element,surface ,6`` ,small			Immediately	$ 45.14
F15B	316439802		Element,surface ,6`` ,small   (Replaces: 318372212)			Immediately	$ 192.78
F27	318368600		Terminal Block,surface Element ,25`` ,white Leads		Appelez-nous	-
F27	318368601		Terminal Block,surface Element ,28`` ,black Leads		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,silver ,(4)				$ 15.17
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
