SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

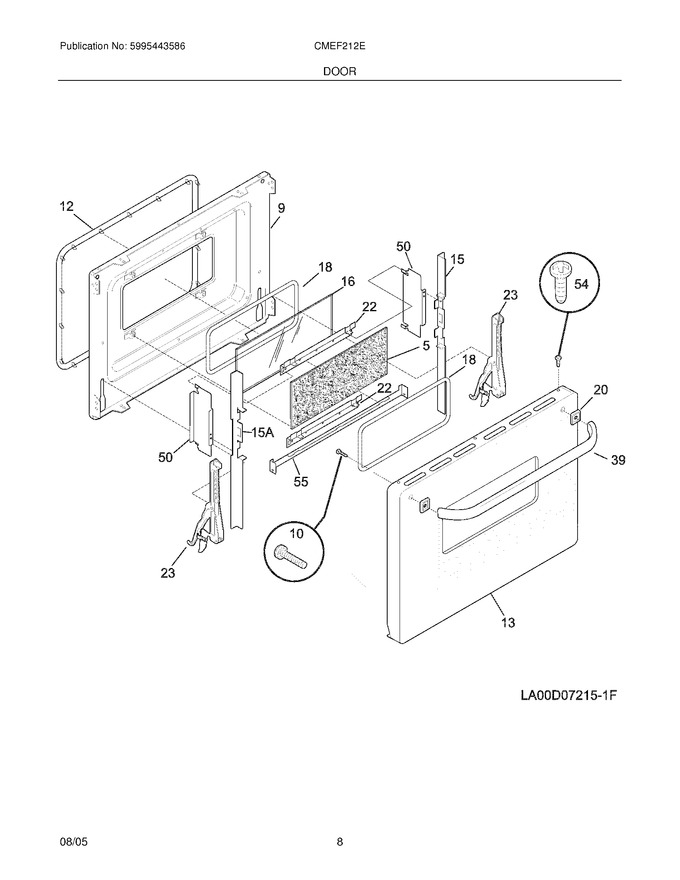

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
9	318156410		Liner,oven Door		Appelez-nous	-
10	732022890		Screw,10-24 X 0.625   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053321		Seal,oven Door				$ 43.10
13	318009044		Panel,oven Door ,bisque		Appelez-nous	-
15	5303311153		Bracket,glass Mtg ,rs				$ 10.87
16	5303310508		Glass-oven Door,tinted ,inner		Appelez-nous	-
18	318053203		Gasket,door Glass Seal ,outer				$ 57.54
20	318014303		Spacer,handle ,bisque ,(2)		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318024702		Hinge,oven Door ,lower Oven		Appelez-nous	-
39	316091125		Handle,door ,bisque		Appelez-nous	-
50	318144900		Panel,side Brace ,glass		Appelez-nous	-
54	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
55	318122300		Bracket,glass Support				$ 11.39
15A	5303311154		Bracket,glass Mtg ,ls		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
