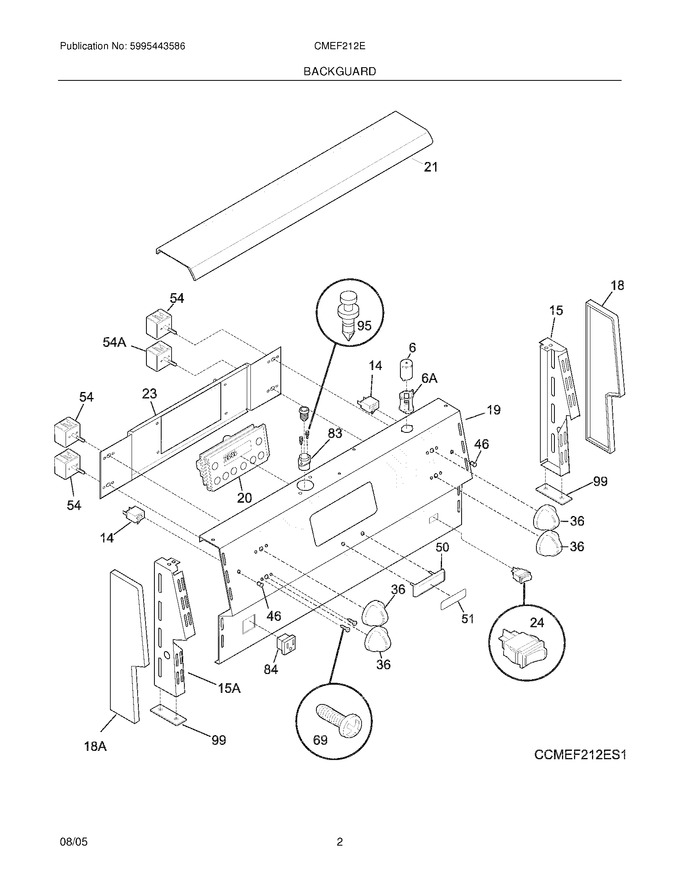

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303323991		Lamp,indicator				$ 26.25
15	5303304000		Bracket,end Cap Mtg. ,rh				$ 7.14
18	318254502		End Cap,white ,rh		Appelez-nous	-
19	318005497		Panel,control ,white		Appelez-nous	-
21	318051202		Trim,canopy/shield ,white		Appelez-nous	-
23	318256001		Bracket,clock Mtg		Appelez-nous	-
36	318017110		Knob,control ,white				$ 43.00
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
50	318146600		Frame,nameplate ,white				$ 8.82
51	318337900		Nameplate,silver ,frigidaire				$ 11.97
51	316095422		Nameplate,silver ,wht Westinghse.		Appelez-nous	-
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
84	318146825		Outlet,electrical ,white-glossy ,combined				$ 18.38
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	5303304001		Bracket,end Cap Mtg. ,lh				$ 5.62
18A	318254503		End Cap,white ,lh		Appelez-nous	-
F20	903091-9061		Clock/timer,electronic ,white ,es100   (Replaces: 318326206)				$ 455.19
F24	318037513		Switch,rocker ,white ,oven Light				$ 62.11
F54	318293810		Switch,surface Unit ,small   (Replaces: 318220060)			Immediately	$ 100.17
F54A	318293811		Switch,surface Unit ,large   (Replaces: 318220061)			Immediately	$ 88.67
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	316220728		Overlay,clock ,white   (Replaces: 318214407)			Immediately	$ 39.44
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
