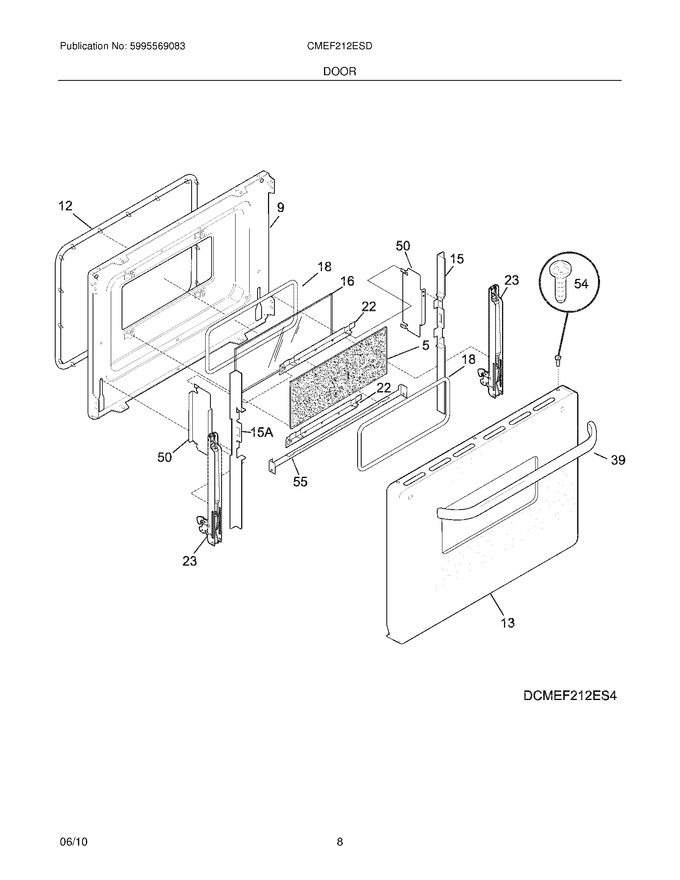

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318381302		Glass-oven Door,front				$ 45.31
9	318156416		Liner,oven Door				$ 106.94
12	318053321		Seal,oven Door				$ 43.10
13	318576401		Panel,door ,white ,outer				$ 146.20
15	5303311153		Bracket,glass Mtg ,rs				$ 10.87
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
18	318053203		Gasket,door Glass Seal ,outer				$ 57.54
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318567104		Hinge,oven Door				$ 87.20
39	318362820		Handle Assembly,door ,white ,w/spacer				$ 115.76
50	318144900		Panel,side Brace ,glass		Appelez-nous	-
54	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
55	318122300		Bracket,glass Support				$ 11.39
15A	5303311154		Bracket,glass Mtg ,ls		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
