Diagram # Part Number Description Series Availability Ships Price Add to Cart
47 5303285720 Grate-top Burner Special Order $ 201.02

48 5303285853 Top-main-almond Appelez-nous -
57 5303297990 Top Burner (front) Appelez-nous -
58 5303297991 Top Burner (rear) Appelez-nous -
68 5303285723 Manifold Pipe Appelez-nous -
81 5303285857 Backguard Shell (almond) Appelez-nous -
81 5303285856 Backguard Shell (white) Appelez-nous -
89 5303285724 Knob-thermostat Special Order $ 91.72

94 5303285725 Knob-top Burner Appelez-nous -
96 5303285726 Thermostat-oven Appelez-nous -
100 5303285727 Valve-top Burner Special Order $ 218.03

177 5303285859 Control Panel (almond) Appelez-nous -
218 5303285729 Regulator-pressure Appelez-nous -
245 5303285779 Spark Ignitor, Lt Appelez-nous -
246 5303285780 Spark Ignitor, Rt Appelez-nous -
247 5303285785 Switch-top Ignition Appelez-nous -
248 5303285786 Switch-oven Ignition Appelez-nous -
254 5303285777 Bracket-spark Gap Appelez-nous -
*10348 5303285789 Clip-spark Ignitor Appelez-nous -
*10348 5303285962 Pal Nut Appelez-nous -
*10348 5303285950 Bezel Appelez-nous -
74A 5303285854 End Cap Lt-back-guard Special Order $ 83.84

74B 5303285855 End Cap Rt-back-guard Special Order $ 82.32


    View Diagram in Separate Window     Print Icon   Print Part List

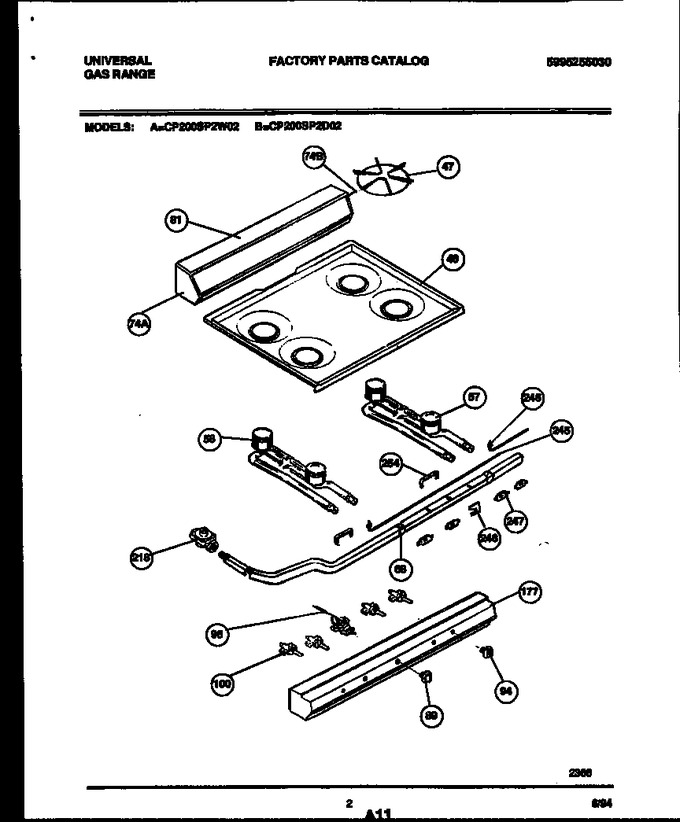

Diagram for CP200SP2D2
