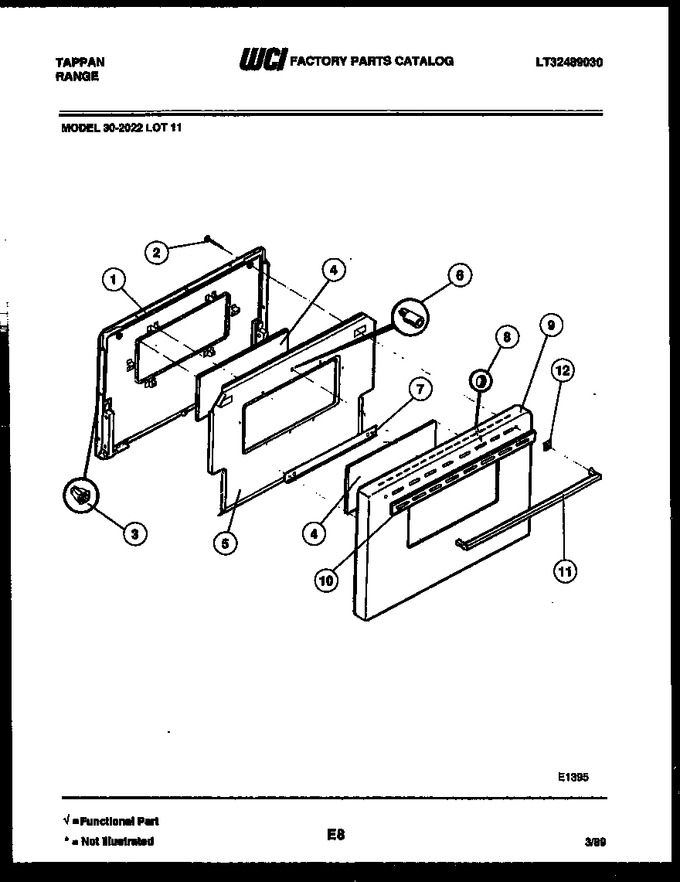

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 381T086W06-86 | Liner - Oven |
|
- | |||||
| 2 | 636T138P05 | Screw-handle Mtg |
|
- | |||||
| 3 | 3131254 | Fastener-nylon Push-in Spacer |
|
- | |||||
| 4 | 276T088P01 | Glass-oven Door (front & Inner) |
|
- | |||||
| 5 | 3131543 | Shield, Wool |
|
- | |||||
| 6 | 241T017P180 | Fastener - Nylon Spacer (3/4``) |
|
- | |||||
| 7 | 3131540 | Angle, Glass Retainer |
|
- | |||||
| 8 | 241T017P148 | Fastener-oven Door Trim Mtg-push Nut |
|
- | |||||
| 9 | 533T051W09-00 | Panel, Oven Door (white) |
|
- | |||||
| 10 | 740T410P01 | Trim, Oven Door Top (black) |
|
- | |||||
| 11 | 296T026P05 | Handle-oven Door |
|
- | |||||
| 12 | 665T140P01 | Spacer - Oven Door Handle |
|
- | |||||
| *20832 | 328T049P29 | Insulation-wool |
|
- | |||||
| 2A | 789T053P42 | Washer-handle Screw (non-illustrated) |
|
- |
