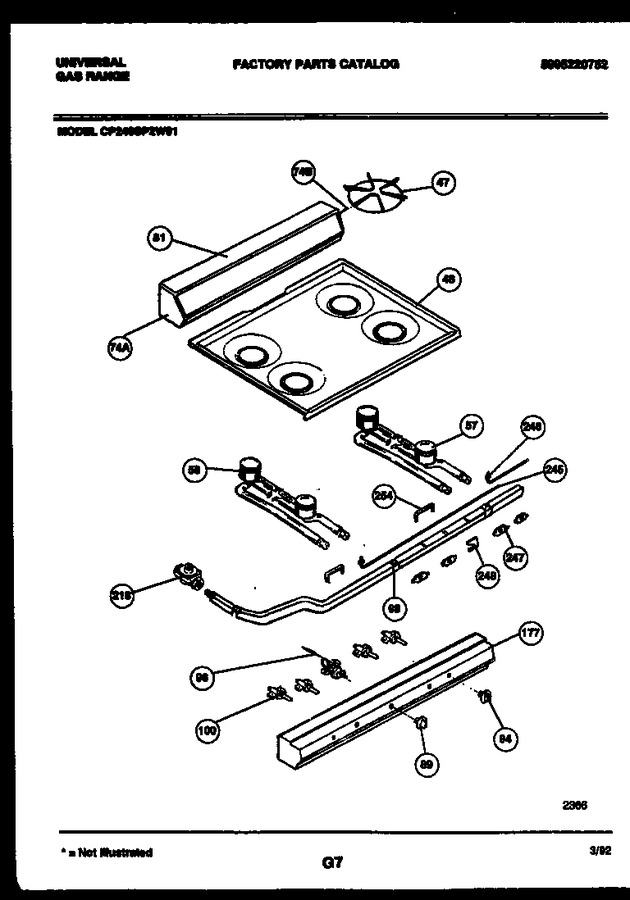

02 - Cooktop, Burner, Control Parts
03 - Door And Broiler Parts
04 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 47 | 5303285720 | Grate-top Burner |
|
$ 201.02 | |||||
| 48 | 5303285703 | Top-main (almond) |
|
- | |||||
| 57 | 5303285721 | Top Burner (front) |
|
- | |||||
| 58 | 5303285722 | Top Burner (rear) |
|
- | |||||
| 68 | 5303285723 | Manifold Pipe |
|
- | |||||
| 81 | 5303285713 | Backguard Shell (almond) |
|
- | |||||
| 89 | 5303285724 | Knob-thermostat |
|
$ 91.72 | |||||
| 94 | 5303285725 | Knob-top Burner |
|
- | |||||
| 96 | 5303285787 | Thermostat-oven |
|
- | |||||
| 100 | 5303285727 | Valve-top Burner |
|
$ 218.03 | |||||
| 218 | 5303285729 | Regulator-pressure |
|
- | |||||
| 245 | 5303285779 | Spark Ignitor, Lt |
|
- | |||||
| 246 | 5303285780 | Spark Ignitor, Rt |
|
- | |||||
| 247 | 5303285785 | Switch-top Ignition |
|
- | |||||
| 248 | 5303285786 | Switch-oven Ignition |
|
- | |||||
| 254 | 5303285777 | Bracket-spark Gap |
|
- | |||||
| *23978 | 5303285788 | Clip-backguard, Tinnerman |
|
- | |||||
| *23978 | 5303285789 | Clip-spark Ignitor |
|
- | |||||
| *23979 | 3051113 | Bezel |
|
- | |||||
| *23979 | 5303131215 | Pal Nut |
|
- | |||||
| 177A | 5303285705 | Control Panel (almond) (non-illustrated) |
|
- | |||||
| 74A | 5303285714 | End Cap Lt-backguard |
|
- | |||||
| 74B | 5303285715 | End Cap Rt-backguard |
|
- |
