SELECT A DIAGRAM

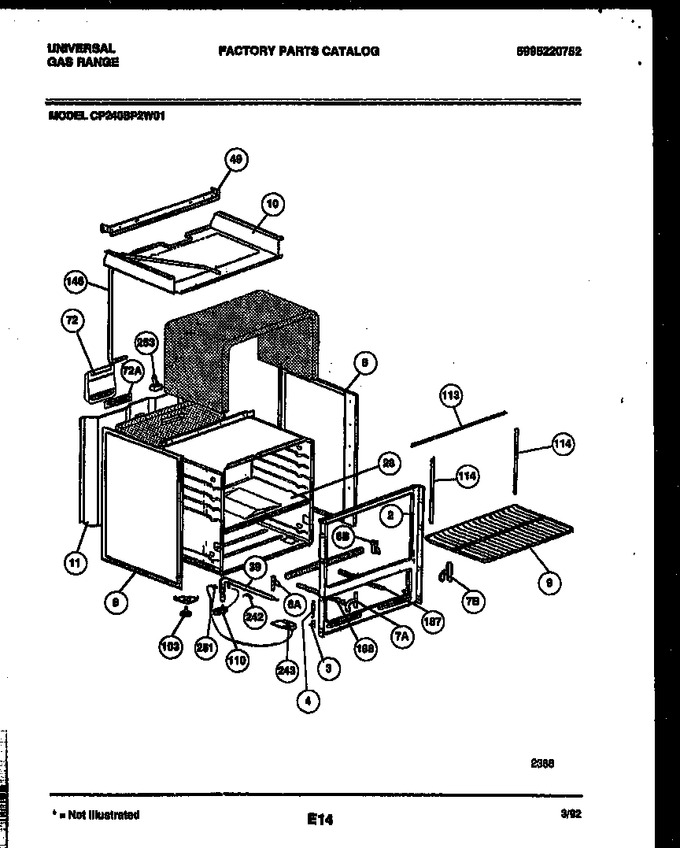

01 - Cover


02 - Cooktop And Burner Parts


03 - Door And Broiler Drawer Parts


04 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303285746		Bracket-spring		Appelez-nous	-
4	5303285747		Spring-oven Door		Appelez-nous	-
8	5303285711		Side Panel Lt/rt (almond)		Appelez-nous	-
8	5303285710		Side Panel Lt/rt (white)		Appelez-nous	-
9	5303285756		Rack-oven		Appelez-nous	-
10	5303285748		Burner Box		Appelez-nous	-
11	5303285754		Back-main		Appelez-nous	-
28	5303285755		Bottom-oven		Appelez-nous	-
39	5303285753		Burner-oven		Appelez-nous	-
49	5303285758		Support-burner		Appelez-nous	-
72	5303285760		Vent Box Assy		Appelez-nous	-
103	5303285762		Leveler-leg		Appelez-nous	-
110	5303285749		Valve-oven Safety				$ 477.96
113	5303285765		Seal-oven Door, Top				$ 81.74
114	5303285764		Seal-oven Door, Sides		Appelez-nous	-
146	5303285767		Tubing-oven Supply		Appelez-nous	-
187	5303285769		Broiler Track Rt		Appelez-nous	-
188	5303285770		Broiler Track Lt		Appelez-nous	-
242	5303285783		Pilot Assy-electric Ignition		Appelez-nous	-
243	5303200332		Module-spark		Appelez-nous	-
251	5303285781		Ignitor-oven Spark		Appelez-nous	-
253	5303285784		Plug-jumper		Appelez-nous	-
*52542	5303285773		Insulation-back		Appelez-nous	-
*52542	5303285776		Cotter Pin-oven Door		Appelez-nous	-
*52542	5303285766		Seal-oven Door Btm		Appelez-nous	-
*52542	5303285772		Insulation-wrapper		Appelez-nous	-
*52542	5303285771		Anti-tip Kit		Appelez-nous	-
*52542	5303285778		Cover-spark Module		Appelez-nous	-
*52542	5303285774		Insulation-front		Appelez-nous	-
*52542	5303285775		Hinge Pin-oven Door		Appelez-nous	-
6A	5303285750		Hinge Lt Body		Appelez-nous	-
6B	5303285751		Hinge Rt Body		Appelez-nous	-
72A	5303285761		Gasket-vent Box		Appelez-nous	-
7A	5303285752		Hinge Lt Oven Door		Appelez-nous	-
7B	5303285752		Hinge Rt Oven Door		Appelez-nous	-
