01 - Cabinet Top & Control Hood Rear Panel


02 - Cabinet, Exhaust Duct & Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


04 - Graphic Panel, Control Hood & Controls


05 - Heater Box


06 - Heater Box


07 - Loading Door, Front Panels & Access Door


08 - Motor, Exhaust Fan & Belt


09 - Power Cord & Terminals


10 - Rear Blkhd, Felt Seal & Cylinder Roller


11 - Terminal Block (startin Sn S6271976xg)


12 - Terminal Block (thru Sn S6271975xg)

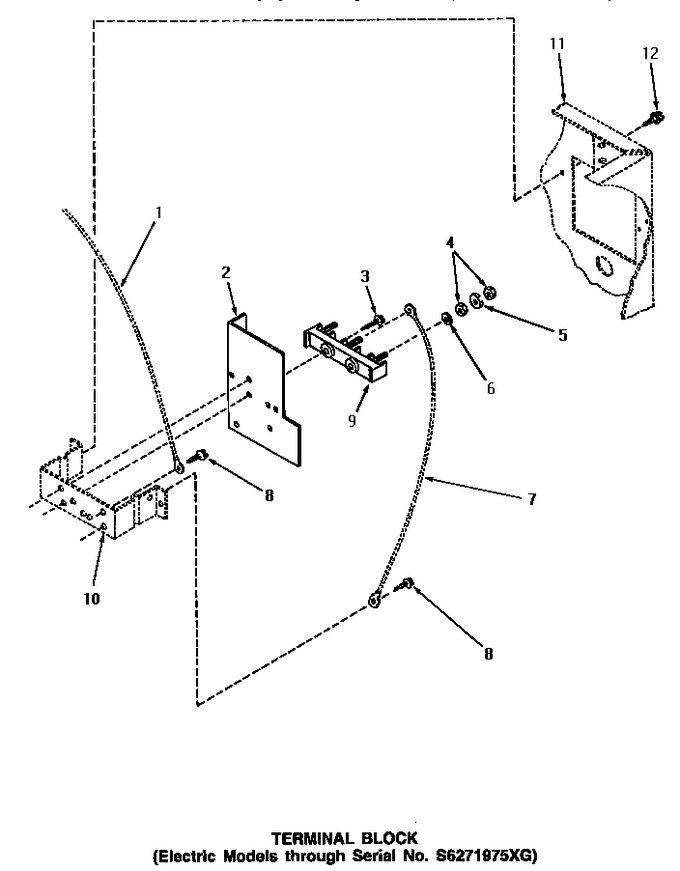

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
2	56087		Shield,terminal Block		Appelez-nous	-
3	Q6535		Screw,10b-16 X 3/4 Rou		Appelez-nous	-
4	Q6163		Nut				$ 2.09
5	51474		Washer,13/64idx1/2odx.				$ 4.35
6	56552		Lockwasher		Appelez-nous	-
7	Y00000000		See Note Ground Wire, Green -- (see Note)		Appelez-nous	-
8	WP3351614		Screw, 10-24x3/8 Hex   (Replaces: 20530)			Immediately	$ 6.26
9	58555		Terminal Block		Appelez-nous	-
10	Y00000000		See Note Terminal Block Bracket		Appelez-nous	-
11	Y00000000		See Note Cabinet		Appelez-nous	-
12	WP27001200		Screw   (Replaces: 33562)				$ 6.91

    View Diagram in Separate Window       Print Part List
