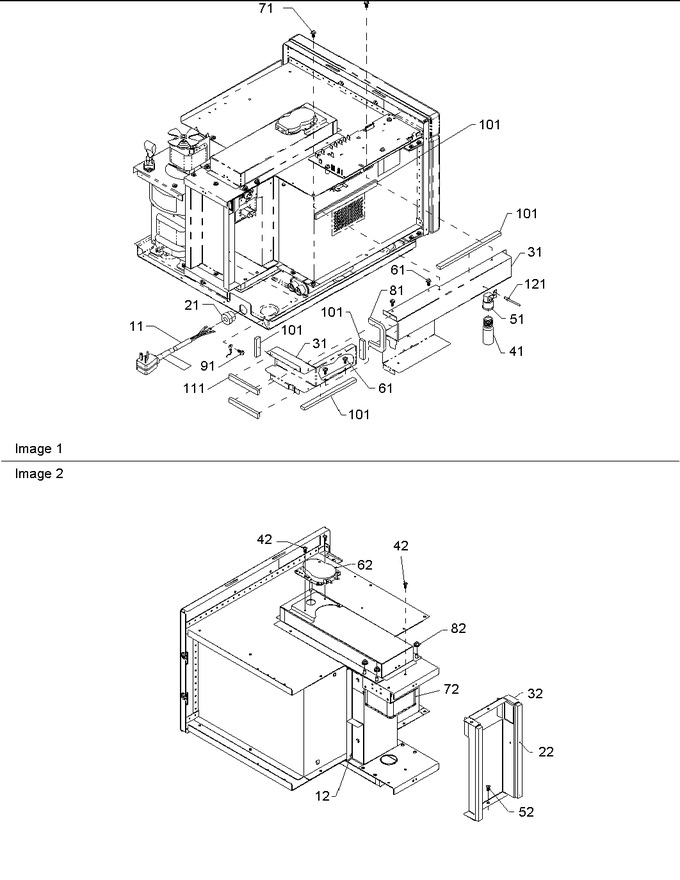

01 - Control/antenna & Basepan Assembly


02 - Door Assy


03 - Electrical Components


04 - Light & Magnetron/stirrer Motor


05 - Splash Shield/blower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	1731300208		Cord, Power		Appelez-nous	-
12	12107301		Duct, Mag Inlet		Appelez-nous	-
21	M0370003		Strain Relief		Appelez-nous	-
22	10966607		Gasket, Neoprene (1 Roll)		Appelez-nous	-
31	R9900126		Assy, Exhaust Duct Kit		Appelez-nous	-
32	12107401		Duct-mag Outlet		Appelez-nous	-
41	WPA3073101		Bulb   (Replaces: A3073101)			Immediately	$ 10.90
42	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
51	R9900584		Kit, Receptacle		Appelez-nous	-
52	M0251028		Screw, T.c.		Appelez-nous	-
61	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
62	R0150186		Motor, Stirrer		Appelez-nous	-
71	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
72	10489404		Magnetron-t		Appelez-nous	-
81	A3030302		Gasket		Appelez-nous	-
82	5014-J		Ia 5mm Flange Whiz-lk Nut (25)		Appelez-nous	-
91	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
101	M0275058		Tape, Foam		Appelez-nous	-
111	10966607		Gasket, Neoprene (1 Roll)		Appelez-nous	-
121	A4539625		Pop Rivet		Appelez-nous	-
