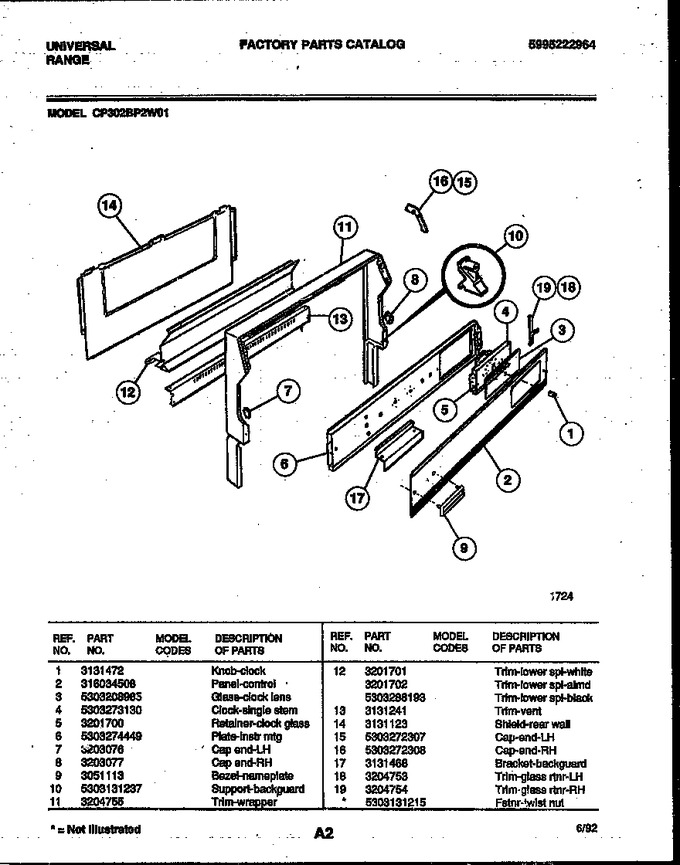

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131472		Knob-clock		Appelez-nous	-
2	316034508		Panel-control		Appelez-nous	-
3	5303208985		Glass-clock Lens		Appelez-nous	-
4	5303273130		Clock-single Stem		Appelez-nous	-
5	3201700		Retainer-clock Glass		Appelez-nous	-
6	5303274449		Plate-instr Mtg		Appelez-nous	-
7	3203076		Cap End-lh		Appelez-nous	-
8	3203077		Cap End-rh		Appelez-nous	-
9	3051113		Bezel, Nameplate		Appelez-nous	-
10	5303131237		Support, Backguard		Appelez-nous	-
11	3204755		Trim, Wrapper		Appelez-nous	-
12	3201702		Trim-lower Spl-almd		Appelez-nous	-
12	3201701		Trim-lower Spl-white		Appelez-nous	-
12	5303288193		Trim-lower Spl-black		Appelez-nous	-
13	3131241		Trim-vent		Appelez-nous	-
14	3131123		Shield, Rear Wall		Appelez-nous	-
15	5303272307		Cap-end-lh		Appelez-nous	-
16	5303272308		Cap-end-rh		Appelez-nous	-
17	3131468		Bracket, Backguard		Appelez-nous	-
18	3204753		Trim-glass Rtnr Lh		Appelez-nous	-
19	3204754		Trim-glass Rtnr Rh		Appelez-nous	-
*72996	5303131215		Fstnr-twist Nut		Appelez-nous	-
