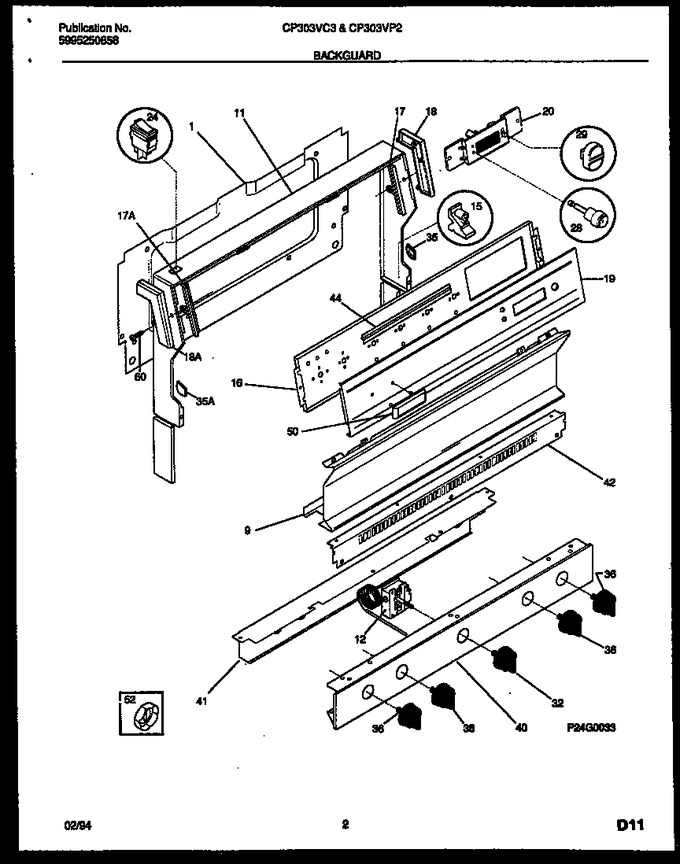

02 - Backguard


03 - Burner, Manifold And Gas Control


04 - Body Parts


05 - Cooktop And Broiler Drawer Parts


07 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043501		Trim-splasher,white		Appelez-nous	-
11	3204764		Trim-wrapper		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	3204747		End Cap, Rh		Appelez-nous	-
19	316034509		Panel, Control, Metal		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	5303288194		Knob-thermostat				$ 169.30
35	3203077		End Cap,rh		Appelez-nous	-
36	5303288187		Knob-top Valve, (4)		Appelez-nous	-
40	316009220		Panel-manifold		Appelez-nous	-
41	3203443		Cover-manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
50	316052100		Bezel-nameplate		Appelez-nous	-
52	5303131215		Nut, Twist		Appelez-nous	-
60	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	3204746		End Cap, Lh		Appelez-nous	-
35A	3203076		End Cap,lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
