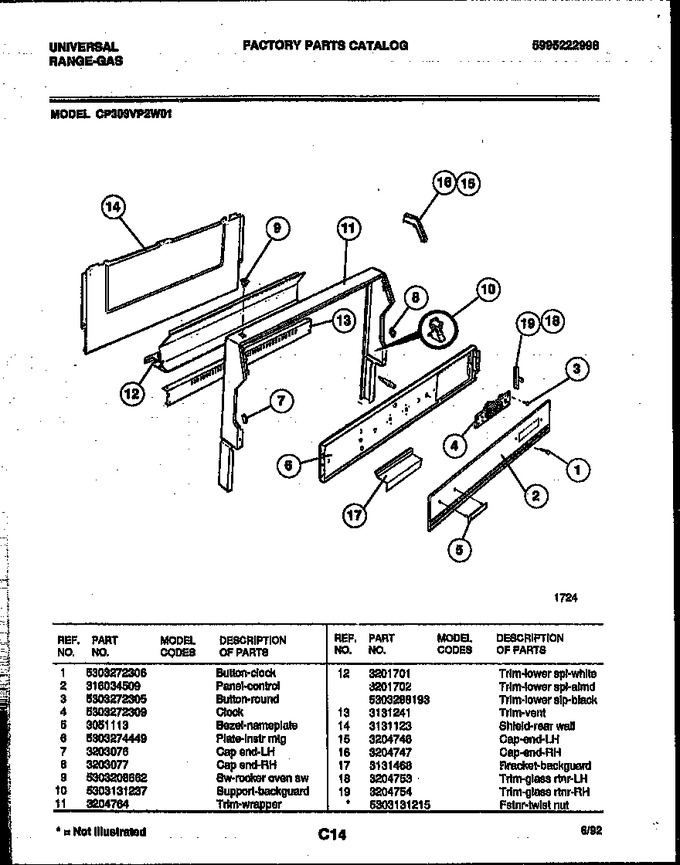

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272306 | Button-clock |
|
- | |||||
| 2 | 316034509 | Panel-control |
|
- | |||||
| 3 | 5303272305 | Button-round |
|
$ 38.80 | |||||
| 4 | 5303272309 | Clock |
|
- | |||||
| 5 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 6 | 5303274449 | Plate-instr Mtg |
|
- | |||||
| 7 | 3203076 | Cap End-lh |
|
- | |||||
| 8 | 3203077 | Cap End-rh |
|
- | |||||
| 9 | 5303208662 | Sw-rocker Oven Sw |
|
- | |||||
| 10 | 5303131237 | Support, Backguard |
|
- | |||||
| 11 | 3204764 | Trim-wrapper |
|
- | |||||
| 12 | 3201702 | Trim-lower Spl-almd |
|
- | |||||
| 12 | 5303288193 | Trim-lower Slp-black |
|
- | |||||
| 13 | 3131241 | Trim-vent |
|
- | |||||
| 14 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 15 | 3204746 | Cap-end Lh |
|
- | |||||
| 16 | 3204747 | Cap-end Rh |
|
- | |||||
| 17 | 3131468 | Bracket, Backguard |
|
- | |||||
| 18 | 3204753 | Trim-glass Rtnr Lh |
|
- | |||||
| 19 | 3204754 | Trim-glass Rtnr Rh |
|
- | |||||
| *73366 | 5303131215 | Fstnr-twist Nut |
|
- |
