01 - Cabinet Top And Control Hood Rear Panel


02 - Cabinet, Exhaust Duct And Base


03 - Cylinder Roller


04 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


05 - Graphics Panel, Ctrl Hood And Ctrls


06 - Heater Box

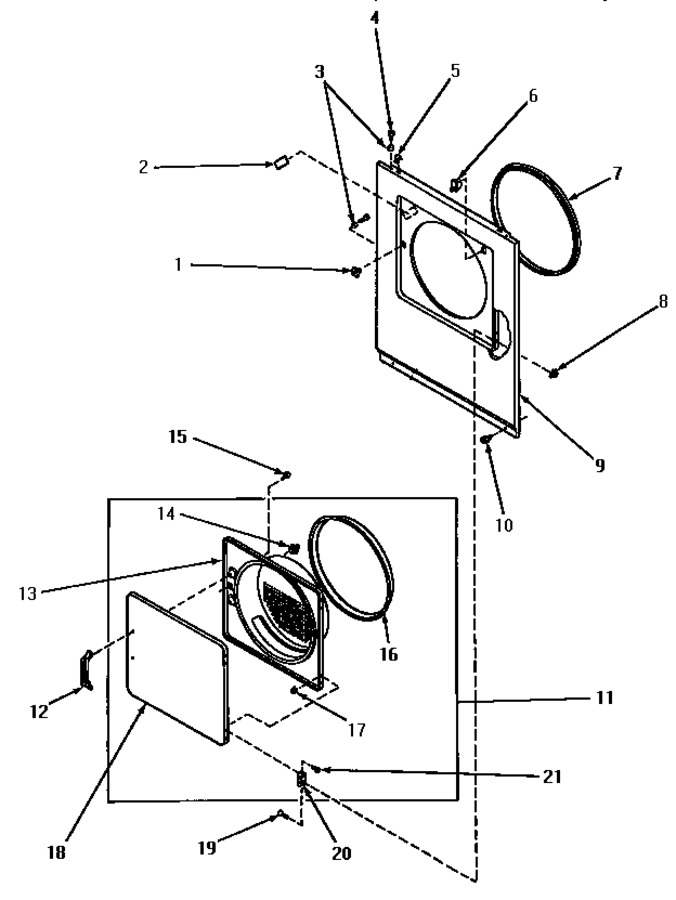

07 - Loading Door, Front Panel And Seals


08 - Motor, Exhaust Fan And Belt


09 - Power Cord And Terminals


10 - Rear Blkhd, Felt Seal & Cylinder Roller


11 - Terminal Block


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
2	58854		Repl By 500281		Appelez-nous	-
3	56079		Locater, Panel			Immediately	$ 6.95
4	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
5	WP22001650		Hold-down Clip   (Replaces: 28835)			Immediately	$ 7.34
6	W10169313		Door Switch   (Replaces: 56052)			Immediately	$ 29.18
7	Y61380		Seal,front Panel		Appelez-nous	-
8	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-
9	62420W		Front Panel, White		Appelez-nous	-
9	62420L		Assy, Frt Pnl/carton		Appelez-nous	-
9	62420H		Front Panel, Harvest Gold		Appelez-nous	-
10	WP27001200		Screw   (Replaces: 58637)				$ 6.91
11	62151L		Assy,door		Appelez-nous	-
11	62151H		Assy,door		Appelez-nous	-
11	62151W		Assy,door		Appelez-nous	-
12	54068P		Pull,door		Appelez-nous	-
13	62152W		Liner,door		Appelez-nous	-
13	62152H		Inner Door Panel, Harvest Gold		Appelez-nous	-
13	62152L		Liner,door		Appelez-nous	-
14	LA-1003		Strike, Door (metal)   (Replaces: 54661)			Immediately	$ 24.51
15	52150		Screw, Thermostat		Appelez-nous	-
16	61379P		Door Seal   (Replaces: 61379)				$ 39.77
17	23407		Nut,speed-8a Tinn C15		Appelez-nous	-
18	62153H		Door (gold)		Appelez-nous	-
18	62153W		Panel Outer Door		Appelez-nous	-
18	62153L		Door		Appelez-nous	-
19	22649		Screw,8-32 X 13/32 Fl		Appelez-nous	-
20	56045P		Kit,hinge		Appelez-nous	-
21	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
