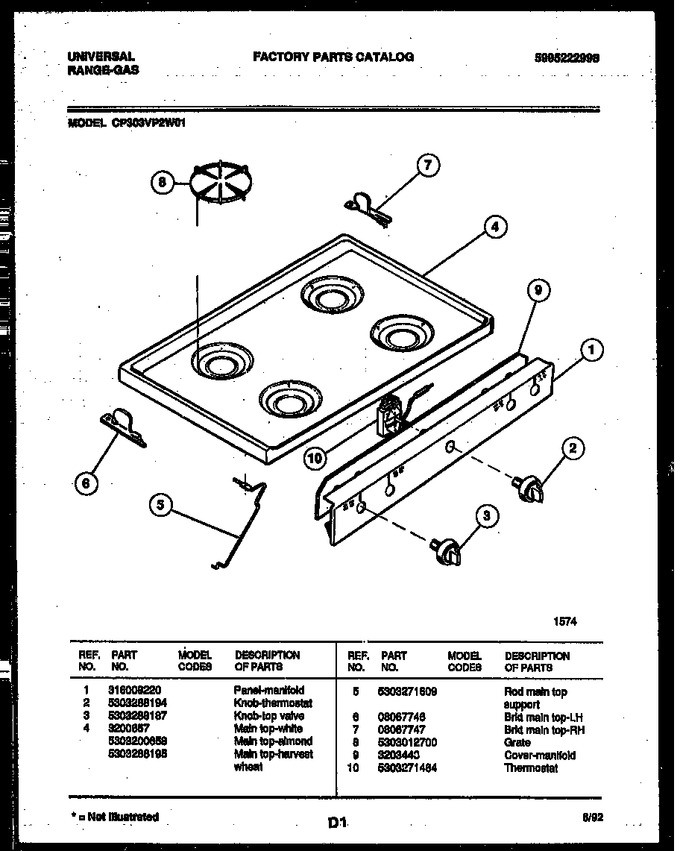

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316009220 | Panel-manifold |
|
- | |||||
| 2 | 5303288194 | Knob-thermostat |
|
$ 169.30 | |||||
| 3 | 5303288187 | Knob-top Valve |
|
- | |||||
| 4 | 3200657 | Main Top, White |
|
- | |||||
| 5 | 5303271609 | Rod-maintop Support |
|
- | |||||
| 6 | 08067746 | Brkt, Main Top (lh) |
|
- | |||||
| 7 | 08067747 | Brkt, Main Top (rh) |
|
- | |||||
| 8 | 5303012700 | Grate |
|
- | |||||
| 9 | 3203443 | Cover-manifold |
|
- | |||||
| 10 | 316032411 | Thermostat (Replaces: 5303271464) |
|
Immediately | $ 165.14 |
