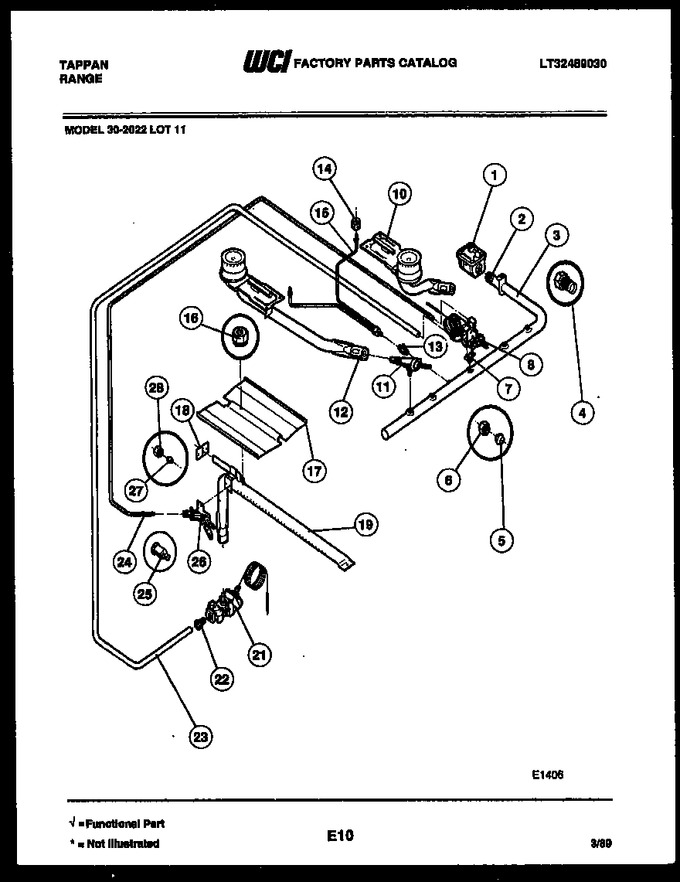

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 166T008P11 | Control-pressure Regulator |
|
- | |||||
| 2 | 008T276F05-18 | Angle-manifold Pipe Support |
|
- | |||||
| 3 | 439T046P04 | Manifold Pipe |
|
- | |||||
| 4 | 247T069P02 | Compression Nut - Thermo/pilot Tube |
|
- | |||||
| 5 | 247T084P01 | Ferrule Thermo/oven Support Tube |
|
- | |||||
| 6 | 247T069P04 | Compression Nut-thermo/gas Supply Tube |
|
- | |||||
| 7 | 003T039P01 | Adapter, Thermostat |
|
- | |||||
| 8 | 3131886 | Thermostat |
|
- | |||||
| 10 | 080T015P01 | Burner-top, Front |
|
- | |||||
| 11 | 774T118P01 | Valve-top Burners |
|
- | |||||
| 12 | 080T015P02 | Burner - Top |
|
- | |||||
| 13 | 244T039P01 | Filter, Top Pilot |
|
- | |||||
| 14 | 124T010P01 | Cap-top Pilot |
|
- | |||||
| 15 | 750T185P01 | Tube Top Pilot |
|
- | |||||
| 16 | 479T069P03 | Hex Nut-baffle Mtg |
|
- | |||||
| 17 | 3131517 | Baffle-oven Burner |
|
- | |||||
| 18 | 554T327P02 | Plate-burner Mtg |
|
- | |||||
| 19 | 079T025P01 | Burner - Oven |
|
- | |||||
| 21 | 774T065P02 | Valve - Oven Safety |
|
- | |||||
| 22 | 70-205-5 | Loxit - Safety Valve |
|
- | |||||
| 23 | 750T085P25 | Tube - Oven Supply |
|
- | |||||
| 24 | 750T056P19 | Tube-oven Pilot Supply |
|
- | |||||
| 25 | 499T012R04 | Orifice - Oven Pilot |
|
- | |||||
| 26 | 549T023P01 | Pilot-oven |
|
- | |||||
| 27 | 247T073P01 | Ferrule-top Oven - Pilots & Thermo Pilot Tube 3/16`` |
|
- | |||||
| 28 | 479T080P01 | Compression Nut - Top & Oven Pilots |
|
- |
