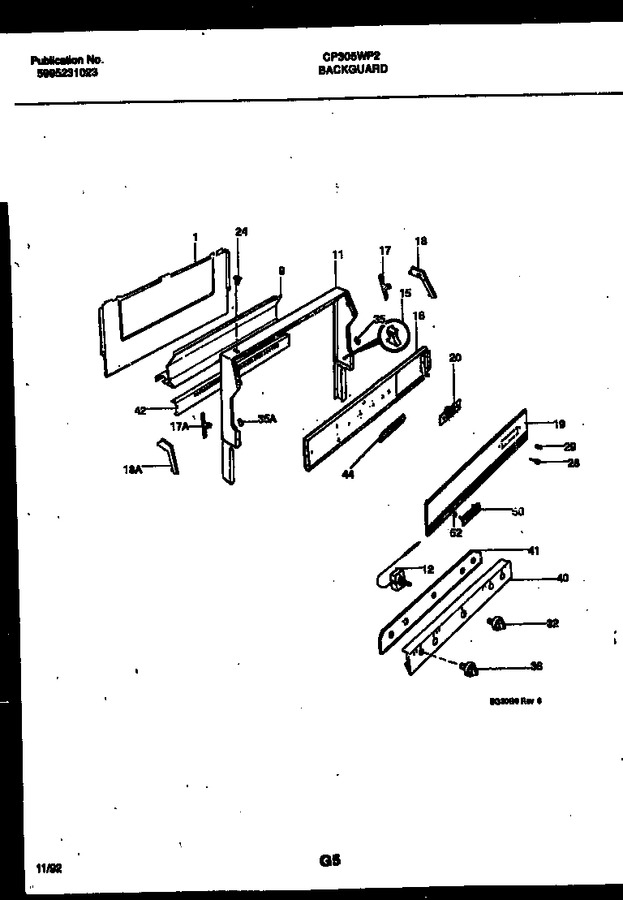

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131123 | Shield-backguard,rear Wall |
|
- | |||||
| 9 | 3201701 | Trim-splasher, White |
|
- | |||||
| 11 | 5303283833 | Trim, Wrapper White |
|
- | |||||
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 316042601 | Plate,instrument Mtg |
|
- | |||||
| 17 | 316037401 | Trim, Glass Retainer, Rh |
|
- | |||||
| 18 | 3204747 | Cap-end Rh |
|
- | |||||
| 19 | 316034525 | Panel, Control, Metal |
|
- | |||||
| 20 | 5303272309 | Clock/timer, Electronic |
|
- | |||||
| 24 | 5303285911 | Switch-oven Light, Rocker, White |
|
$ 10.01 | |||||
| 28 | 316017302 | Push Button, Clock Set, White, (2) |
|
- | |||||
| 29 | 316028401 | Knob-clock, White |
|
- | |||||
| 32 | 5303293705 | Knob, Thermostat |
|
- | |||||
| 35 | 316037301 | Cap-end, Rh |
|
- | |||||
| 36 | 5303293703 | Knob, Top Valve, (4) |
|
- | |||||
| 40 | 316009260 | Panel, Manifold |
|
- | |||||
| 41 | 3203443 | Cover-manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- | |||||
| 44 | 3131468 | Bracket, Backguard |
|
- | |||||
| 50 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist-on, (2) |
|
- | |||||
| 17A | 316037400 | Trim, Glass Retainer, Lh |
|
- | |||||
| 18A | 3204746 | Cap-end Lh |
|
- | |||||
| 35A | 316037300 | Cap-end, Lh |
|
- |
