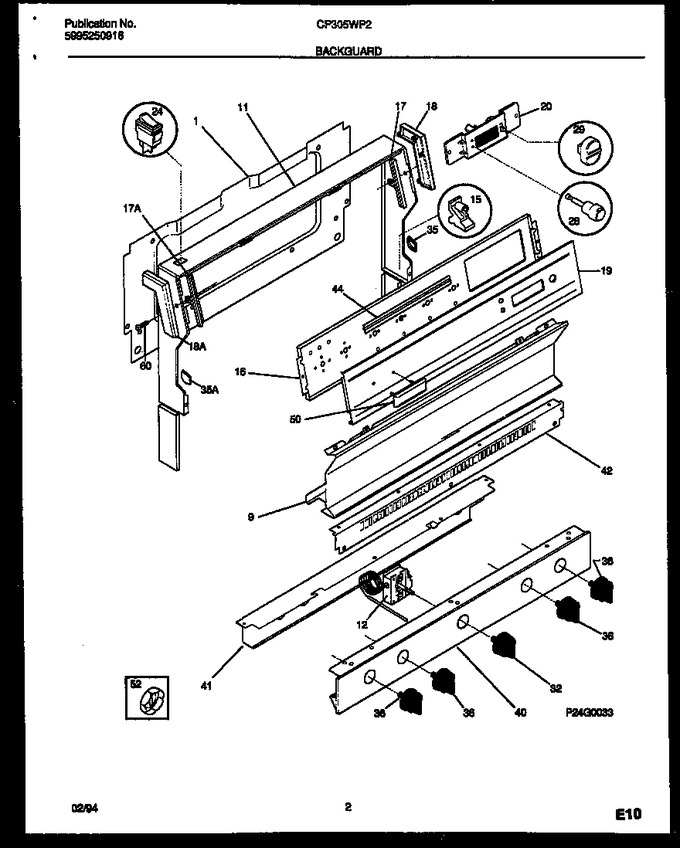

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043501		Trim-splasher,white		Appelez-nous	-
11	5303283833		Trim, Wrapper White		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	316037401		Trim, Glass Retainer, Rh		Appelez-nous	-
18	3204747		End Cap, Rh		Appelez-nous	-
19	316034525		Panel, Control, Metal		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
24	5303285911		Switch-oven Light, Rocker, White				$ 10.01
28	316017302		Push Button, Clock Set, White, (2)		Appelez-nous	-
29	316028401		Knob-clock, White		Appelez-nous	-
32	5303293705		Knob, Thermostat		Appelez-nous	-
35	316037301		End Cap, Rh		Appelez-nous	-
36	5303293703		Knob, Top Valve, (4)		Appelez-nous	-
40	316009260		Panel, Manifold		Appelez-nous	-
41	3203443		Cover-manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
50	316052100		Bezel-nameplate		Appelez-nous	-
52	5303131215		Nut, Twist		Appelez-nous	-
60	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
17A	316037400		Trim, Glass Retainer, Lh		Appelez-nous	-
18A	3204746		End Cap, Lh		Appelez-nous	-
35A	316037300		End Cap, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
