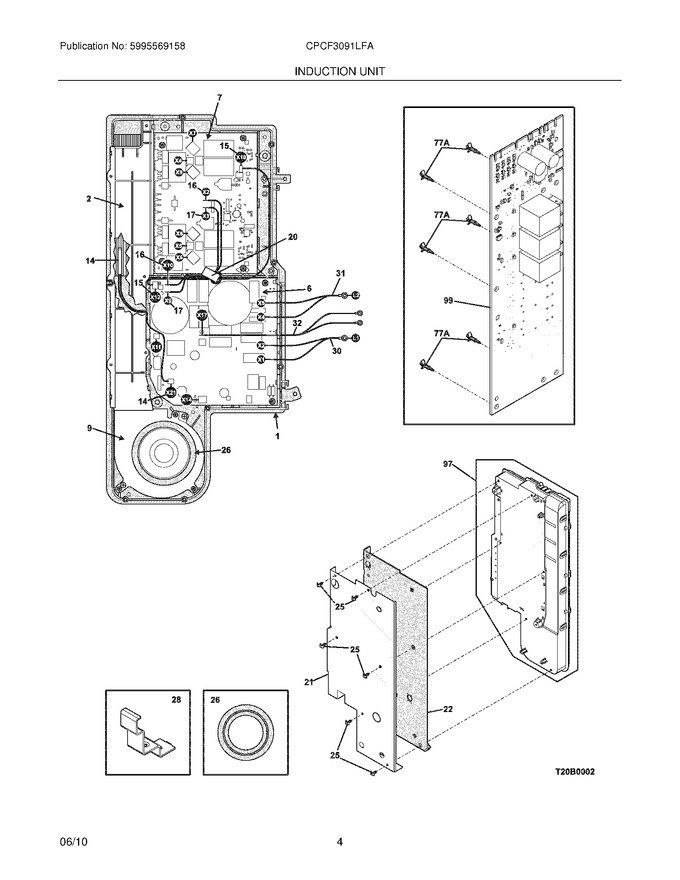

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316300500 | Housing,large ,induction (Replaces: 316300100) |
|
Immediately | $ 1,053.86 | ||||
| 2 | 316300400 | Cover,large Housing ,air Channel |
|
- | |||||
| 21 | 316302800 | Shield,heat ,large Housing |
|
- | |||||
| 22 | 316302300 | Insulation,housing ,large |
|
- | |||||
| 25 | 316303100 | Fastener,mounting ,(6) |
|
- | |||||
| 26 | 316302202 | Seals,ring ,3.5`` And 4.5`` ,fans ,(2) |
|
- | |||||
| 28 | 316301900 | Bracket,mounting ,induction Hsg. |
|
- | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F14 | 316303901 | Sensor Assembly,temperature ,x21 To Sensor,heat Sinks ,w/harness |
|
- | |||||
| F15 | 316304000 | Cable,ribbon ,x12/x13 To X10 ,filter ,to Generator |
|
- | |||||
| F16 | 316304100 | Power Cable Set,filter ,8`` ,black ,to Generator,x10/x2 |
|
- | |||||
| F17 | 316304101 | Power Cable Set,filter ,8`` ,blue ,to Generator,x9/x1 |
|
- | |||||
| F20 | 316300500 | Core,magnetic ,toroid (Replaces: 316304200) |
|
Immediately | $ 1,053.86 | ||||
| F30 | 5304519000 | Harness,wiring ,l1 To X1-x2 (Replaces: 316525625) |
|
$ 18.00 | |||||
| F31 | 5304518999 | Harness,wiring ,l2 To X4-x5 (Replaces: 316525626) |
|
$ 19.42 | |||||
| F32 | 316525616 | Harness,wiring ,aux. Ground |
|
- | |||||
| F6 | 316303601 | Board,filter ,induction |
|
$ 800.05 | |||||
| F7 | 316304300 | Board,generator ,induction |
|
- | |||||
| F9 | 5303935343 | Fan Assembly,cooling ,large ,w/seal Ring |
|
- | |||||
| F97 | 316304500 | Control Assembly,induction ,complete ,w/boards & Fan |
|
$ 1,656.17 | |||||
| F99 | 316304400 | Board,relay |
|
$ 219.24 | |||||
| FNI | 316303501 | Harness Assembly,filter ,electrical ,w/capacitors |
|
$ 84.91 | |||||
| FNI | 316580501 | Harness,wiring ,relay Board ,to Filter Board |
|
$ 38.06 | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 |
