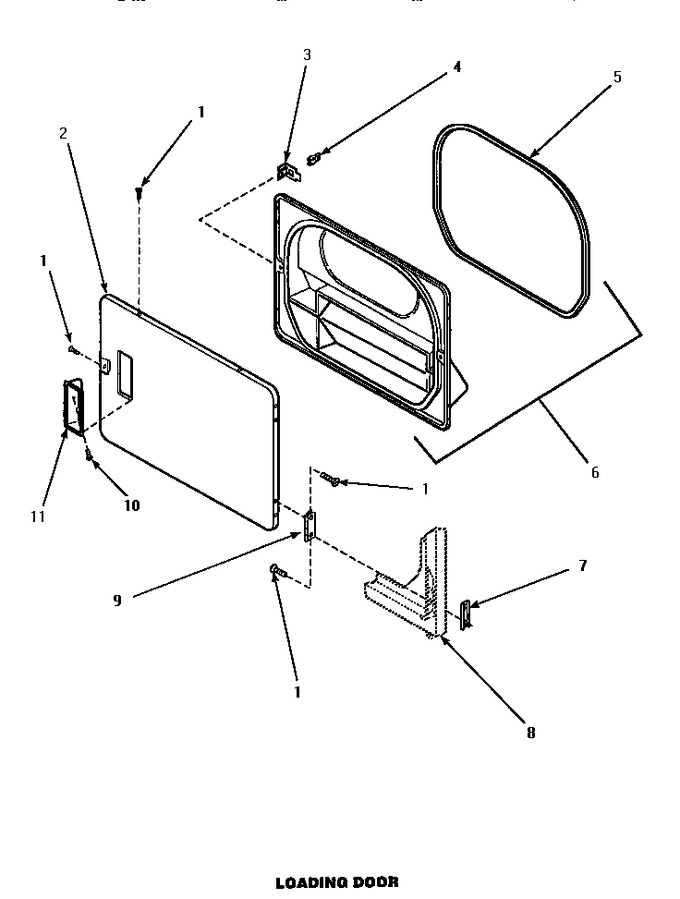

08 - Loading Door


09 - Lower Access Panel, Front Panel & Seal


10 - Motor, Exhaust Fan & Belt


11 - Mtr Conn Block/term & Extractor Tool


12 - Power Cord


13 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D500226		Screw, 8b-16x5/8 Tap   (Replaces: 500226)				$ 3.88
2	500040L		Assy, Door-home		Appelez-nous	-
2	500040W		Assy,door-home		Appelez-nous	-
3	500223		Bracke, Door Strike		Appelez-nous	-
4	LA-1003		Strike, Door (metal)   (Replaces: 500039)			Immediately	$ 24.51
5	D500200P		Seal,door   (Replaces: 500200)				$ 25.45
6	500199		Assy,liner & Seal		Appelez-nous	-
7	500236		Clip,door Hinge Mount		Appelez-nous	-
8	Y00000000		See Note Front Panel -- (see Lower Access Panel Page)		Appelez-nous	-
9	500041		Hinge,door		Appelez-nous	-
10	WP8281236		Screw,8ab-18x1/4 Tap   (Replaces: 500297)				$ 6.80
11	500042W		Pull,door				$ 14.43
11	500042L		Pull,door		Appelez-nous	-
NI	500035L		Assy,door-home		Appelez-nous	-
NI	500035W		Assy,door-home		Appelez-nous	-
