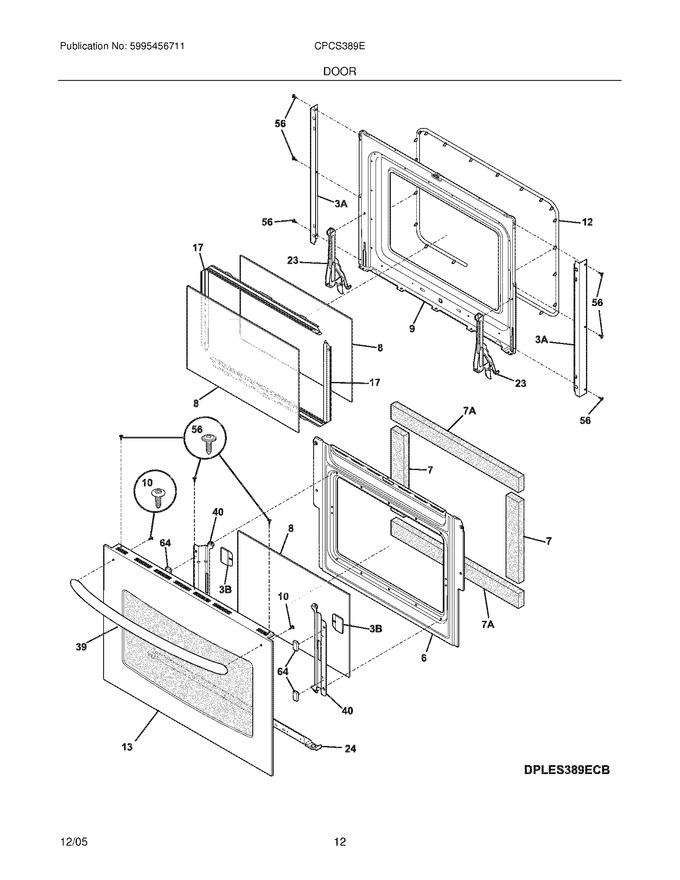

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260500		Baffle,door		Appelez-nous	-
7	318372017		Insulation,oven Door   (Replaces: 318285057)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259605		Liner,door		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
12	318053120		Seal,oven Door   (Replaces: 318053130)			Immediately	$ 159.62
13	318272162		Door Assy,w/nameplate ,stainless Steel ,outer,w/tape & Foil		Appelez-nous	-
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	318024714		Hinge,door ,(2)		Appelez-nous	-
24	318260301		Trim,door ,black ,lower				$ 44.26
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219802)				$ 145.31
40	318382302		Bracket,glass Holder ,(2)   (Replaces: 318242700)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer,(2)				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262104		Cover,rear Door ,black ,(2)   (Replaces: 318262101)				$ 24.99
7A	318372016		Insulation,oven Door   (Replaces: 318285062)				$ 17.72
NI	316221002		Label,anti-tip		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
