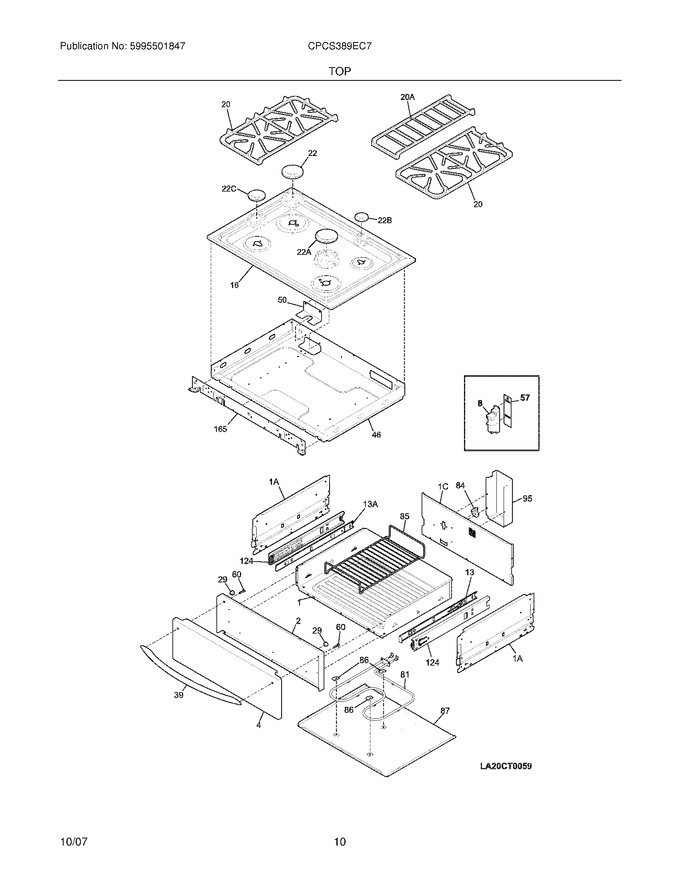

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318304401 | Drawer,body Assembly |
|
- | |||||
| 2 | 318303901 | Panel,drawer ,black ,inner |
|
- | |||||
| 4 | 318298829 | Panel,drawer ,stainless ,front (Replaces: 318298813) |
|
$ 210.92 | |||||
| 13 | 318259507 | Glide,warmer ,inner Rh |
|
Immediately | $ 69.01 | ||||
| 16 | 318289623 | Maintop Assembly,black |
|
- | |||||
| 22 | 316219905 | Cap,14k Burner ,black |
|
$ 146.53 | |||||
| 29 | 318147430 | Bumper,(2) |
|
$ 18.95 | |||||
| 39 | 316246105 | Handle,door/drawer ,stainless (Replaces: 316246100) |
|
$ 145.31 | |||||
| 46 | 318291401 | Box,burner |
|
- | |||||
| 50 | 318328500 | Cover,burner Box |
|
- | |||||
| 57 | 318295611 | Panel,service |
|
$ 15.12 | |||||
| 60 | 5304414648 | Screw,10-24 ,(4) (Replaces: 5303308458) |
|
$ 14.18 | |||||
| 85 | 807328301 | Rack,warmer Drawer (Replaces: 318345600) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 318300102 | Panel,warmer Drawer ,lower |
|
$ 106.22 | |||||
| 95 | 318303800 | Shield,wire |
|
- | |||||
| 124 | 316105501 | Glide,outer/rh & Lh ,(2) |
|
$ 90.72 | |||||
| 165 | 318227504 | Plate,mounting |
|
- | |||||
| 13A | 318259506 | Glide,warmer ,inner Lh |
|
$ 69.01 | |||||
| 1A | 318300003 | Panel,warmer Drawer ,side ,(2) (Replaces: 318300000) |
|
$ 56.13 | |||||
| 1C | 318300300 | Panel,warmer Drawer ,rear |
|
- | |||||
| 20A | 318221724 | Grate,black ,center |
|
$ 274.89 | |||||
| 22A | 316271904 | Cap,16/17k Burner ,black |
|
$ 206.11 | |||||
| 22B | 316206604 | Cap,5k Burner ,black |
|
$ 102.69 | |||||
| 22C | 316213505 | Cap,9.5k Burner ,black ,(2) |
|
$ 102.30 | |||||
| F20 | 316424203 | Grate,black ,(2) |
|
$ 355.67 | |||||
| F8 | 5304505695 | Module,spark (Replaces: 316135701) |
|
Immediately | $ 68.16 | ||||
| F81 | 318255301 | Element,warmer Drawer (Replaces: 318255300) |
|
$ 105.42 | |||||
| F84 | 318005108 | Thermostat |
|
Immediately | $ 81.14 | ||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(4) |
|
$ 15.17 | |||||
| NI | 5304453707 | Screw, 8-32 X 3/8 (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5303325171 | Washer,plastic |
|
- |
