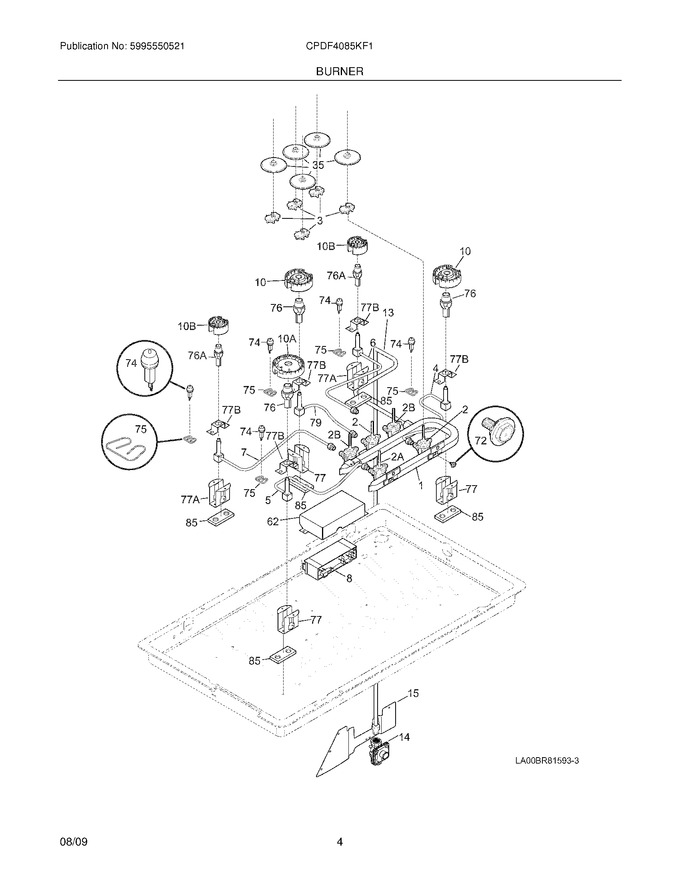

05 - Burner


07 - Body


09 - Maintop


11 - Drawer/small Door


13 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177200		Manifold Pipe		Appelez-nous	-
8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
13	318054507		Connector,manifold Tube				$ 142.54
15	318149202		Bracket,regulator		Appelez-nous	-
35	318146301		Bushing				$ 34.34
62	318160203		Cover,spark Module		Appelez-nous	-
72	5303323141		Screw,valve Mtg ,1/4-20 X 5/16		Appelez-nous	-
75	318148800		Clip,electrode				$ 68.57
77	318112010		Bracket,burner Mtg ,medium & Large		Appelez-nous	-
85	318175302		Shim,burner Support		Appelez-nous	-
77A	318112000		Bracket,burner Mtg ,small				$ 51.14
77B	318180900		Bracket,burner Tube				$ 8.56
F10	318148001		Burner,top ,9100 Btu ,medium Lf & Lr				$ 112.88
F10A	318148002		Burner,top ,13000 Btu ,large Rf				$ 144.64
F10B	318148000		Burner,top ,5000 Btu ,small Rr				$ 252.58
F14	318122700		Regulator,pressure				$ 139.63
F2	5303935042		Valve,top Burner ,2-position ,9100 Btu				$ 175.25
F2A	318087040		Valve,top Burner ,13000 Btu				$ 284.34
F2B	318087001		Valve,top Burner ,5000 Btu				$ 204.59
F3	318232607		Wiring Harness,w/igntr Switch				$ 108.45
F4	318167715		Tube,burner				$ 198.45
F5	318167716		Tube,burner				$ 195.46
F6	318167706		Tube,burner				$ 223.26
F7	318167713		Tube,burner				$ 178.61
F74	318148700		Ignitor,top Burner				$ 62.19
F76	318167801		Tube,mixing ,medium & Large				$ 98.60
F76A	318167800		Tube,mixing ,small				$ 78.33
F79	318167712		Tube,burner				$ 201.29
FNI	318186800		Lp Conversion Kit				$ 249.64
NI	318199761		Wiring Harness,ignitor				$ 80.43
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
