SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Burner


04 - Body


05 - Griddle


06 - Griddle


07 - Section

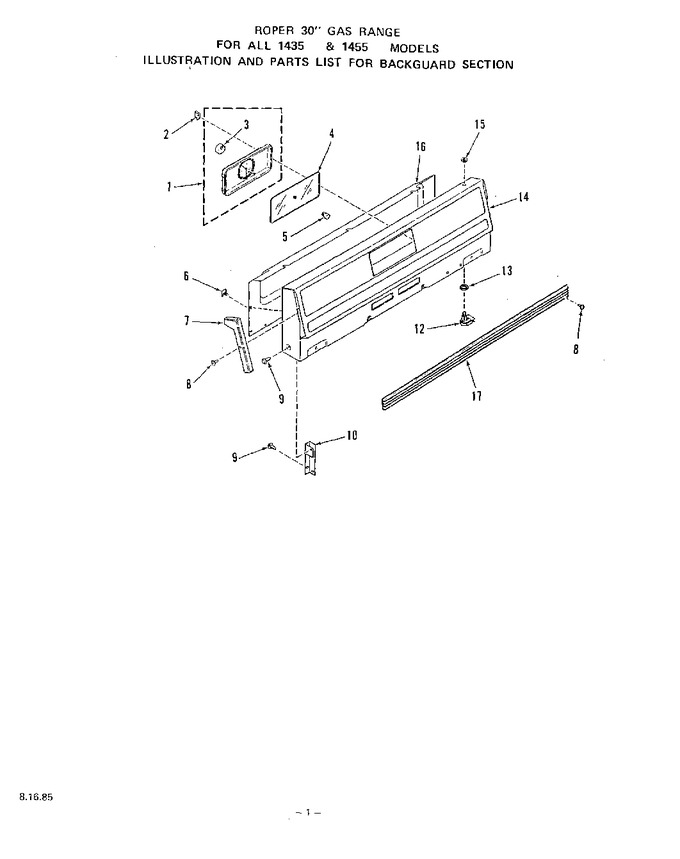

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327536		Clock W/4 Hr. Timer (inc`s. Key 3)		Appelez-nous	-
2	326329		Clip-clock (4 Req)		Appelez-nous	-
3	283296		Clock Motor		Appelez-nous	-
4	323176		Clock Glass		Appelez-nous	-
5	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
6	70588		Clip		Appelez-nous	-
7	326283		Left		Appelez-nous	-
7	326282		Right		Appelez-nous	-
8	327621		Screw 6-32x3/8``		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	327107		Left		Appelez-nous	-
10	327106		Right		Appelez-nous	-
11	326974		Screw 10abx1/2``		Appelez-nous	-
12	298793		Push Switch		Appelez-nous	-
13	236129		Pal Nut 3/8-27		Appelez-nous	-
14	329313		14550a Models		Appelez-nous	-
14	329312		14350a Models		Appelez-nous	-
15	87403		Knurled Nut		Appelez-nous	-
16	320767		Wire Cover-backguard		Appelez-nous	-
17	329236		Trim-crosstie		Appelez-nous	-
