SELECT A DIAGRAM

01 - Bulkhead/felt Seal/cyl Roller & Term Blk


02 - Cabinet Top & Control Hood Rear Panel

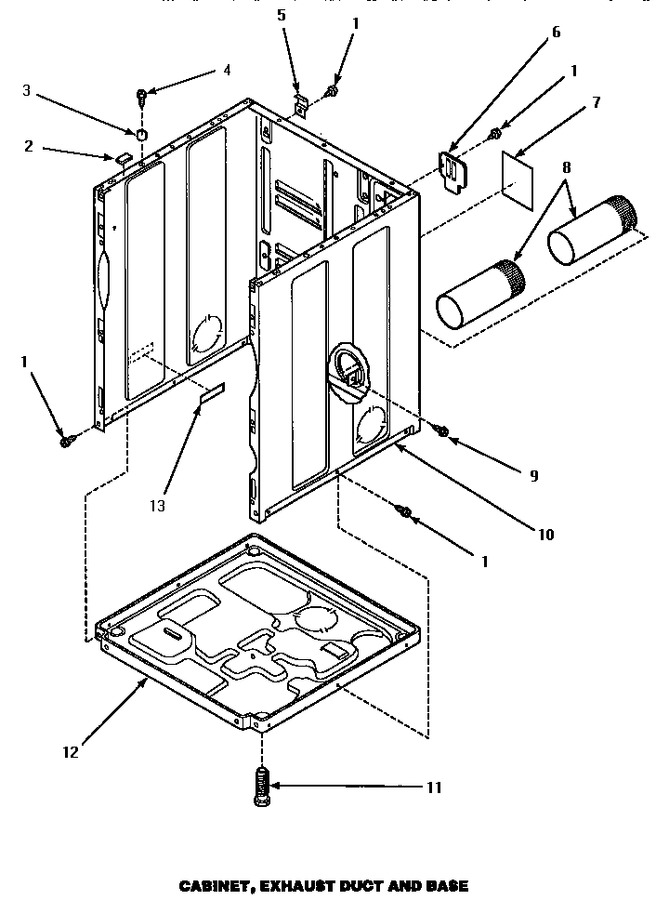

03 - Cabinet, Exhaust Duct & Base


04 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


05 - Graphic Panel, Control Hood & Controls


06 - Heater Box Assy (original)


07 - Heater Box Assy (replacement)


08 - Loading Door


09 - Lower Access Panel, Front Panel & Seal


10 - Motor, Exhaust Fan & Belt


11 - Mtr Conn Block/term & Extractor Tool


12 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP27001200		Screw   (Replaces: 33562)				$ 6.91
2	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
3	56079		Locater, Panel			Immediately	$ 6.95
4	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
5	D510136		Hinge, Top   (Replaces: 500003)				$ 6.95
6	500114		Panel, Access Cover		Appelez-nous	-
7	501289		Sticker		Appelez-nous	-
8	500064		Exhaust Duct		Appelez-nous	-
9	WP3390631		Screw, 10b-16 X .34   (Replaces: 501668)				$ 7.04
10	500001WP		Cabinet, Dryer & Washer (wht)		Appelez-nous	-
10	500001HP		Assy, Cabinet		Appelez-nous	-
10	500001LP		Assy, Cab (home)		Appelez-nous	-
11	Y500101		Leg, Leveling (plastic)				$ 25.84
12	D514245		Base, Dryer   (Replaces: 500070)				$ 101.22
13	61294		Sticker		Appelez-nous	-
NI	Sub. To D513016W		Side Vent Kit   (Replaces: 528P3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
