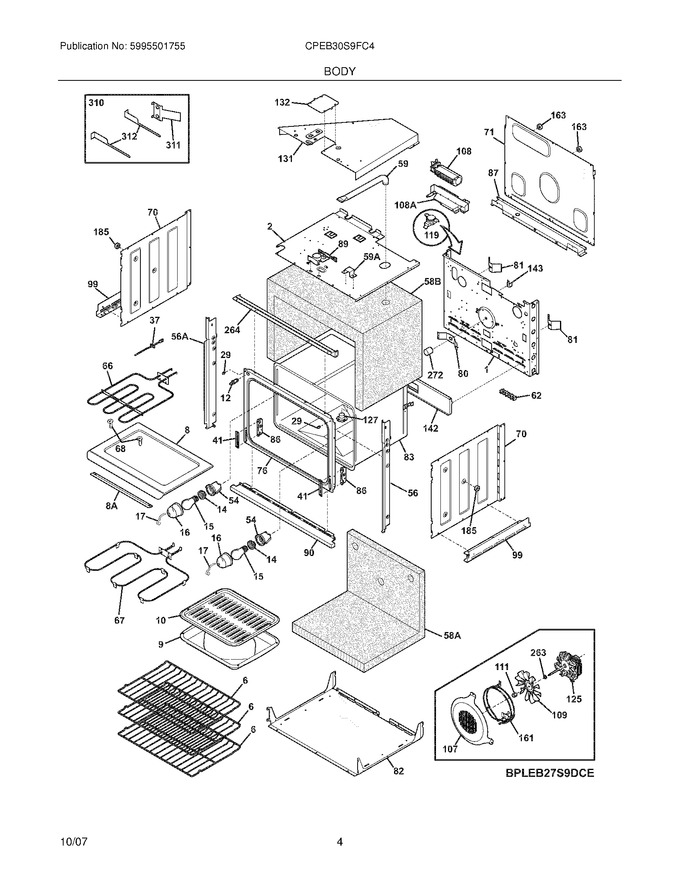

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259205 | Back,main |
|
- | |||||
| 2 | 318258902 | Shield,insulation ,upper |
|
- | |||||
| 6 | 318345208 | Rack,oven |
|
- | |||||
| 8 | 318262001 | Cover,element |
|
$ 398.49 | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Accessory |
|
$ 68.85 | |||||
| 12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 29 | 318147430 | Bumper,(2) (Replaces: 318147411) |
|
$ 18.95 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 56 | 318903704 | Trim,side ,black ,rh |
|
- | |||||
| 59 | 318072560 | Duct,oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 68 | 5304403015 | Support,hanger ,(2) ,broil Element |
|
$ 35.04 | |||||
| 70 | 318259100 | Shield,insulation ,sides ,(2) |
|
$ 63.05 | |||||
| 71 | 318260007 | Panel,rear Box |
|
$ 102.90 | |||||
| 76 | 318056217 | Front,oven |
|
$ 143.06 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258707 | Shield,insulation ,lower |
|
$ 108.24 | |||||
| 83 | 318261400 | Liner,oven Assy |
|
$ 313.16 | |||||
| 86 | 318342400 | Receptacle,hinge |
|
$ 43.24 | |||||
| 87 | 318260600 | Bracket,cable Mtg. |
|
- | |||||
| 90 | 318259803 | Trim,base ,stainless |
|
- | |||||
| 99 | 318256201 | Bracket,side ,bottom ,(2) |
|
$ 56.70 | |||||
| 107 | 318219405 | Cover,fan (Replaces: 318219401) |
|
$ 82.69 | |||||
| 109 | 318398302 | Blade,fan (Replaces: 316136400) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 127 | 318317100 | Adapter Assembly,vent Tube ,w/converter |
|
$ 75.13 | |||||
| 131 | 318272901 | Box,vent |
|
$ 59.01 | |||||
| 132 | 318003000 | Plate,shield |
|
- | |||||
| 142 | 318123910 | Deflector |
|
- | |||||
| 143 | 318172904 | Support,wire |
|
- | |||||
| 163 | 318014111 | Spacer,(2) |
|
- | |||||
| 185 | 318531800 | Spacer,oven Shield ,(4) (Replaces: 318014700) |
|
$ 12.76 | |||||
| 263 | 316008401 | Washer,flat (Replaces: 316136500) |
|
$ 11.34 | |||||
| 264 | 318257701 | Trim,oven ,black ,front |
|
$ 78.91 | |||||
| 272 | 318249401 | Tube,protector |
|
$ 6.23 | |||||
| 310 | 5304440067 | Cabinet Mounting Kit |
|
$ 29.87 | |||||
| 311 | 318246010 | Bracket,cabinet Mtg,(2) |
|
- | |||||
| 311 | 5304438005 | ยท Screw,6 X 1 ,black |
|
$ 9.93 | |||||
| 312 | 318246703 | Tool,cabinet Bracket ,lh |
|
$ 12.13 | |||||
| 312 | 318246702 | Tool,cabinet Bracket ,rh |
|
$ 12.13 | |||||
| 108A | 318251300 | Bracket,fan Support |
|
$ 54.60 | |||||
| 56A | 318903705 | Trim,side ,black ,lh |
|
- | |||||
| 58A | 318285055 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133791 | Insulation,oven Back ,back/bottom |
|
- | |||||
| 59A | 318261600 | Bracket,vent Tube |
|
- | |||||
| 8A | 318318600 | Bracket,element ,hidden Bake |
|
$ 37.17 | |||||
| F108 | 318073028 | Motor,blower (Replaces: 318073018) |
|
Immediately | $ 271.69 | ||||
| F119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| F125 | 5303316994 | Insulation,3.81 X 3.13 |
|
- | |||||
| F125 | 5304467898 | Motor,fan (Replaces: 316415800) |
|
Immediately | $ 225.67 | ||||
| F161 | 318255504 | Element,convection ,350 W (Replaces: 318255503) |
|
$ 97.07 | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F66 | 318255605 | Element,broil ,2750w (Replaces: 318255600) |
|
Immediately | $ 192.78 | ||||
| F67 | 318254906 | Element,bake ,3400w ,8 Pass |
|
Immediately | $ 259.36 | ||||
| F89 | 318261229 | Motor,latch Assy (Replaces: 318261211) |
|
Immediately | $ 93.62 | ||||
| NI | 318268099 | Insulation,oven Light |
|
- | |||||
| NI | 318078542 | Box & Wires Assy |
|
- | |||||
| NI | 318370303 | Wriring Harness,latch |
|
- | |||||
| NI | 318370335 | Wriring Harness,main |
|
- | |||||
| NI | 5304436875 | Screw,8-18 X 1/2,black |
|
$ 14.41 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303323136 | Screw-ground |
|
- | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303324184 | Screw,8-18 X 5/16 ,black ,(4) |
|
Immediately | $ 14.18 |
