| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP489464 |
 |
Screw (Replaces: Y33561) |
|
|
Immediately |
$ 7.05 |
|
|
| 2 |
6140 |
|
Thermostat Heater |
|
Appelez-nous
|
- |
|
|
|
| 3 |
D500313 |
 |
Seal,blower Hsg (Replaces: 500313) |
|
|
|
$ 27.05 |
|
|
| 4 |
31260 |
|
Screw, No.8 X 3/8 Ind H |
|
|
|
$ 2.68 |
|
|
| 5 |
500078 |
|
Cover, Blower Housing |
|
Appelez-nous
|
- |
|
|
|
| 6 |
D510139P |
 |
Assembly, Blower Fan (Replaces: 56000) |
|
|
Immediately |
$ 101.08 |
|
|
| 7 |
D511969WP |
 |
Housing, Blower (Replaces: 56020) |
|
|
|
$ 61.51 |
|
|
| 8 |
501218 |
|
Kit, Switch Motor |
|
Appelez-nous
|
- |
|
|
|
| 9 |
D511574P |
|
Assembly, Motor & Pulley (Replaces: 501211) |
|
|
Immediately |
$ 281.70 |
|
|
| 10 |
WP660658 |
 |
Clamp, Motor Mount (Replaces: Y58047) |
|
|
|
$ 7.05 |
|
|
| 11 |
WP40111201 |
 |
Belt, Cylinder (Replaces: 59174) |
|
|
Immediately |
$ 16.81 |
|
|
| 12 |
D500011 |
 |
Pulley,motor (Replaces: 500011) |
|
|
Immediately |
$ 47.46 |
|
|
| 13 |
590P3 |
|
Kit, Mtr Hub Ring |
|
|
|
$ 68.06 |
|
|
| 14 |
WP3351614 |
 |
Screw, 10-24x3/8 Hex (Replaces: 20530) |
|
|
Immediately |
$ 6.26 |
|
|
| 15 |
Y00000000 |
|
See Note See Note Ground Wire From Motor To Mounting Bracket |
|
Appelez-nous
|
- |
|
|
|
| 16 |
WP3390631 |
 |
Screw, 10b-16 X .34 (Replaces: 501668) |
|
|
|
$ 7.04 |
|
|
| 17 |
WP27001200 |
 |
Screw (Replaces: 33562) |
|
|
|
$ 6.91 |
|
|
| 18 |
WP56076 |
 |
Spring, Idler (Replaces: 56076) |
|
|
|
$ 65.70 |
|
|
| 19 |
56156 |
 |
Nut, 3/8-16 Serrated |
|
|
|
$ 6.95 |
|
|
| 20 |
WP37001144 |
 |
Lever, Idler (Replaces: 500910) |
|
|
|
$ 49.90 |
|
|
| 21 |
WP56461 |
 |
Shaft (Replaces: 56461) |
|
|
|
$ 85.03 |
|
|
| 22 |
WP233520 |
 |
Washer, 501 Id X3/4 Odx (Replaces: 52549) |
|
|
Immediately |
$ 7.16 |
|
|
| 23 |
WPY54414 |
 |
Assembly, Wheel & Bearing (Replaces: Y54414) |
|
|
Immediately |
$ 19.11 |
|
|
| 24 |
WP23748 |
 |
Ring, Retaining (Replaces: 23748) |
|
|
Immediately |
$ 10.75 |
|
|
| 25 |
D500824 |
 |
Screw, 1/4-20 Unc Hex (Replaces: 500824) |
|
|
|
$ 6.95 |
|
|
| 26 |
WP37001287 |
 |
Assy, Idler Lever (Replaces: 500269) |
|
|
Immediately |
$ 49.53 |
|
|
| 27 |
WP3351614 |
|
Screw, 10-24x3/8 Hex (Replaces: 20530) |
|
|
Immediately |
$ 6.26 |
|
|
| 28 |
WPW10139757 |
 |
Nut, Hex Jam 1/4-20l (Replaces: 52566) |
|
|
|
$ 7.16 |
|
|
| 29 |
500822 |
|
Mount, Motor |
|
Appelez-nous
|
- |
|
|
|
| 30 |
Y00000000 |
|
See Note See Note Base -- (see Cabinet Page) |
|
Appelez-nous
|
- |
|
|
|
| 31 |
Y61372 |
|
Thermostat |
|
|
|
$ 43.72 |
|
|

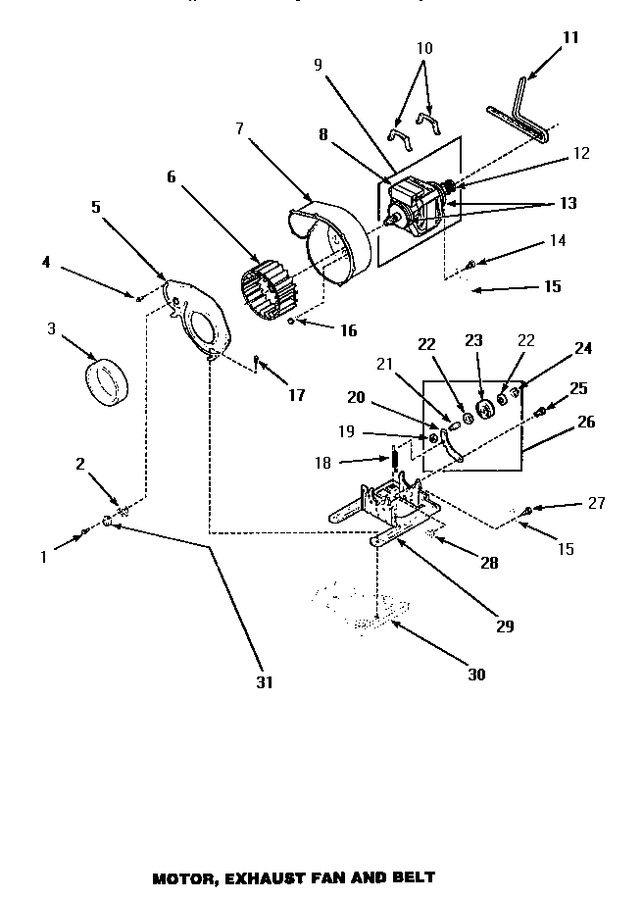

View Diagram in Separate Window
