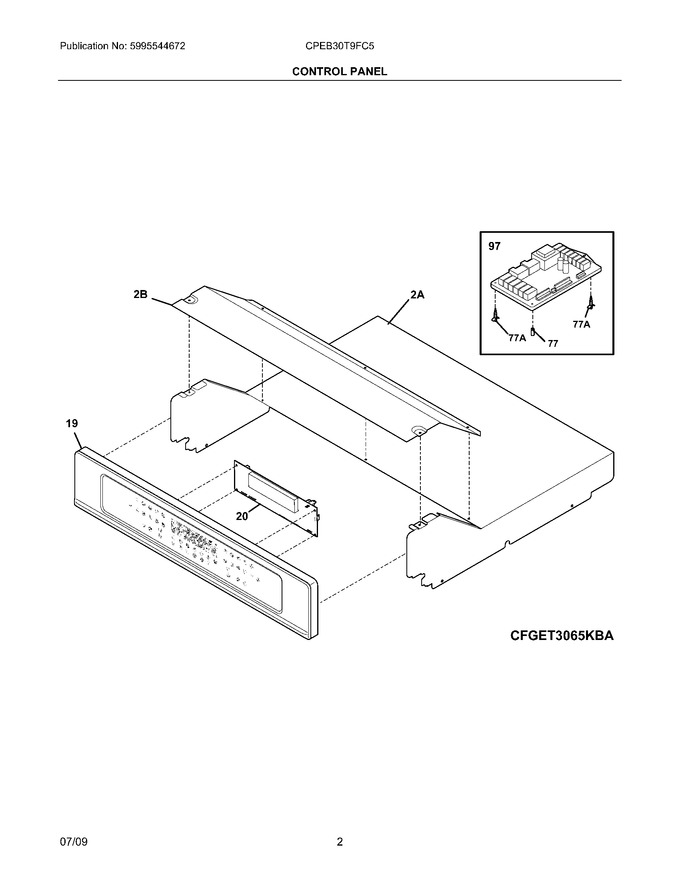

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 318271535 | Control Panel Assembly,steel/glass ,stainless/black,w/touch Pad |
|
$ 427.15 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 2A | 318257300 | Shield,oven Top |
|
$ 89.36 | |||||
| 2B | 318260100 | Cover,box |
|
$ 44.42 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F20 | 316443835 | Control,electronic ,es610w3 ,dual Oven |
|
$ 335.53 | |||||
| F97 | 316443911 | Board,relay ,dual Oven |
|
Immediately | $ 379.28 | ||||
| FNI | 5304517327 | Wiring Harness,timer ,to Relay Board (Replaces: 318370374) |
|
$ 83.42 | |||||
| NI | 5304436875 | Screw,8-18 X 1/2,black |
|
$ 14.41 | |||||
| NI | 5304401490 | Screw,6-18 X 1 ,(2) |
|
- | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
