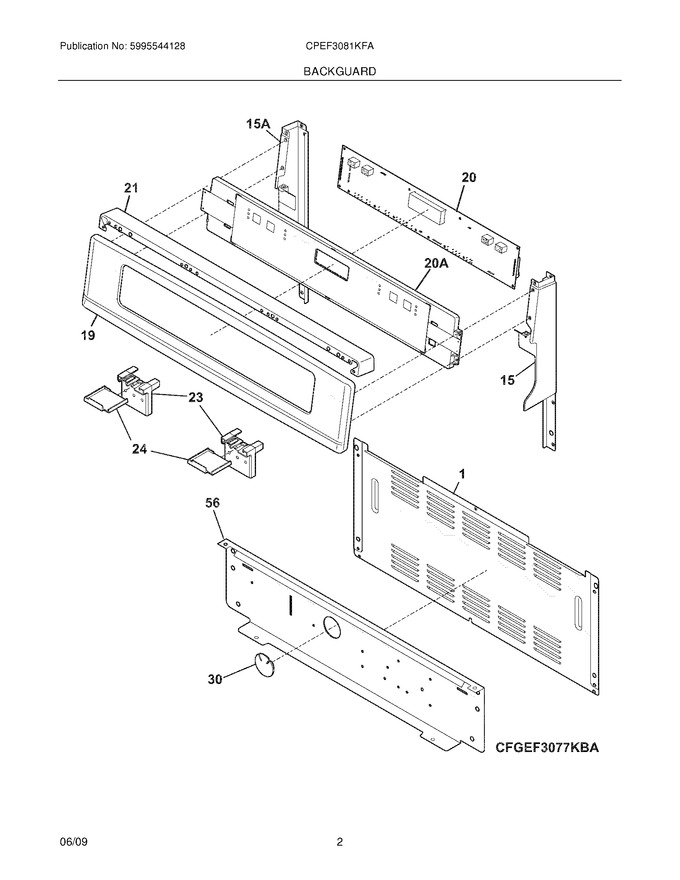

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
15	316546702		Cap,backguard ,black ,rh End				$ 52.55
19	316572402		Panel,backguard ,stainless				$ 339.36
21	316546605		Cap,backguard ,black ,top   (Replaces: 316546601)				$ 66.91
23	316573600		Bracket,support ,bottom				$ 18.38
24	316574200		Bracket,support ,top ,(2) ,membrane				$ 17.64
30	316577100		Plug,hole ,backguard				$ 7.79
56	316234045		Shield,backguard ,black ,inner   (Replaces: 316234013)				$ 66.74
15A	316546703		Cap,backguard ,black ,lh End				$ 64.47
F20	316562011		Controller,electronic ,es1000		Appelez-nous	-
F20A	316549104		Membrane,touch Control ,silver ,assembly				$ 627.92
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
