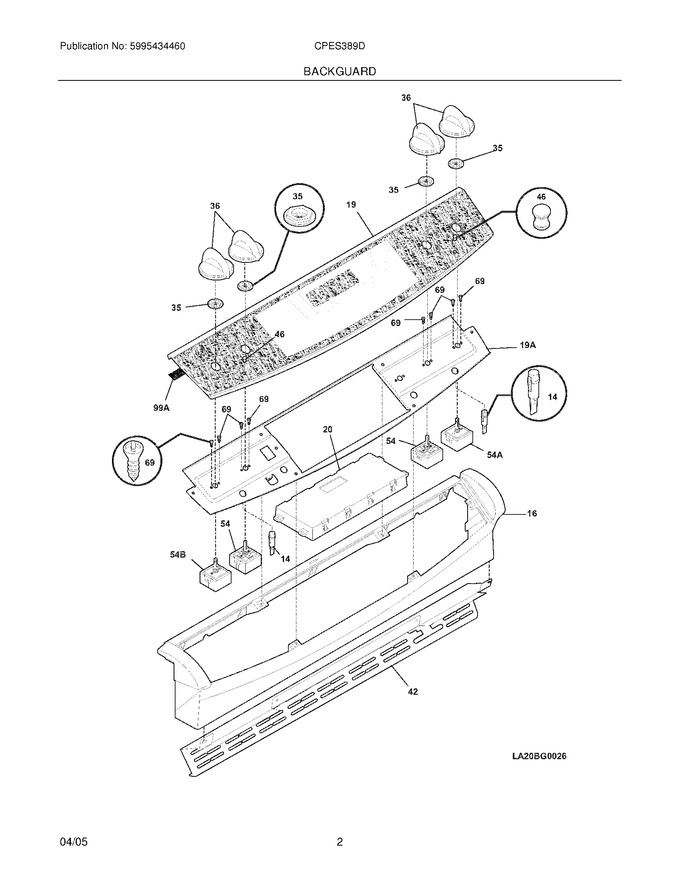

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318235021		Console,assy. ,black ,w/ End Caps				$ 347.39
19	318239702		Panel,control Assy. ,black/stainless ,w/membrane		Appelez-nous	-
35	318183100		Support,glass ,black				$ 9.35
36	318229301		Knob,control ,black		Appelez-nous	-
42	318224301		Trim,vent ,black ,bottom		Appelez-nous	-
46	318228300		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
19A	318224403		Panel,control Mtg.				$ 199.61
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318044831		Light,indicator ,125v ,(2)   (Replaces: 318044825)				$ 16.69
F20	316272204		Clock/timer,electronic ,es500/es550				$ 429.61
F54	903136-9010		Switch,surface Unit ,single   (Replaces: 318220080)			Immediately	$ 107.42
F54A	318220082		Switch,surface Unit ,dual		Appelez-nous	-
F54B	318191023		Switch,infinite ,dual			Immediately	$ 70.64
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
