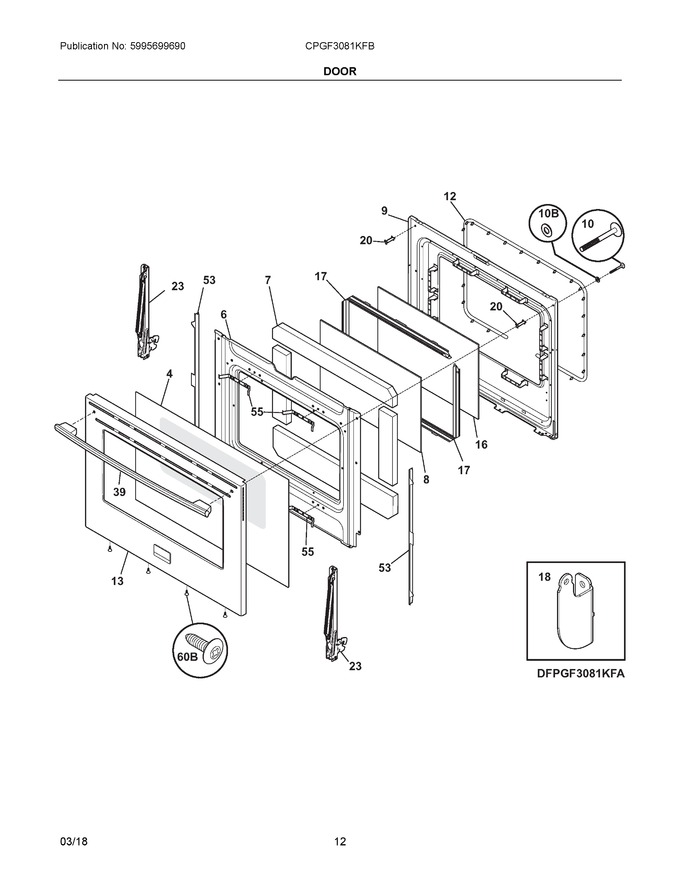

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452724		Glass, Oven Door, Gray, W/foil				$ 157.92
6	316402306		Shield, Wool		Appelez-nous	-
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423805		Liner, Oven Door				$ 140.49
10	316516802		Screw, Truss Hd, 10-24 X 3, (2)				$ 18.21
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 88.74
13	316604011		Panel, Oven Door, Stainless   (Replaces: 316407818)				$ 130.63
16	316117501		Glass, Oven Door, Inner				$ 148.16
17	5304504811		Spacer, Door Glass, (2)   (Replaces: 316402403)			Immediately	$ 25.02
18	316547900		Link, Door, (2), Auto Rack				$ 20.56
20	316408600		Spacer, Door Handle, (2)				$ 16.45
23	316456306		Hinge, Oven Door, (2)				$ 56.96
39	5304532118		Handle, Door/drawer, Stainless   (Replaces: 316551500)				$ 112.88
53	5304532043		Shield, Filler, Door, (2)   (Replaces: 316408101)				$ 37.41
55	316408300		Bracket, Glass Support, (4)				$ 21.23
10B	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433603		Label, Anti-tip				$ 3.55
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
