SELECT A DIAGRAM

01 - Bulkhead/felt Seal/cyl Roller & Term Blk


02 - Cabinet Top & Control Hood Rear Panel


03 - Cabinet, Exhaust Duct & Base


04 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


05 - Graphic Panel, Control Hood & Controls


06 - Heater Box Assy (original)


07 - Heater Box Assy (replacement)


08 - Loading Door

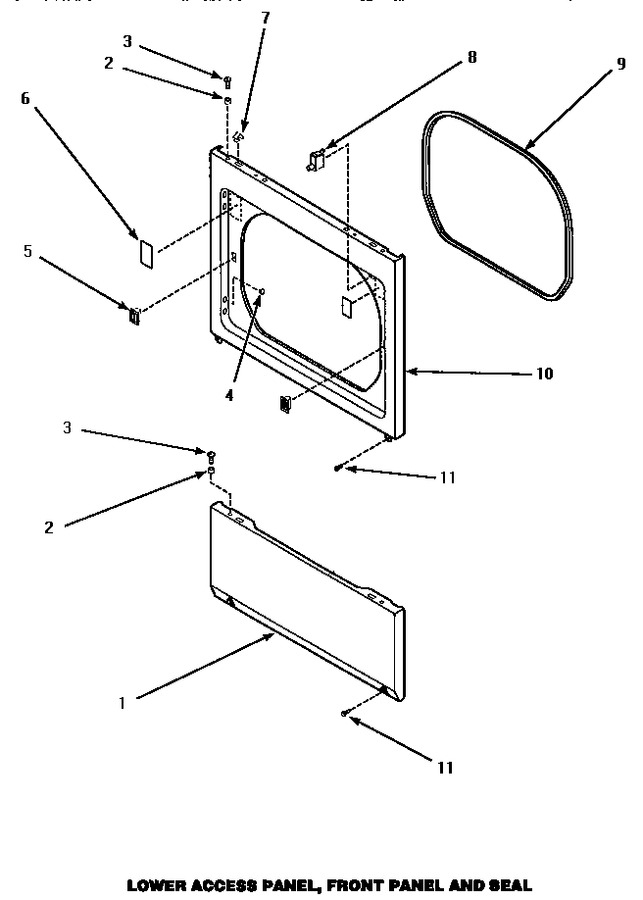

09 - Lower Access Panel, Front Panel & Seal


10 - Motor, Exhaust Fan & Belt


11 - Mtr Conn Block/term & Extractor Tool


12 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	500044H		Panel,access		Appelez-nous	-
1	500044L		Panel, Access (almond)		Appelez-nous	-
1	500044W		Panel, Access (comml)		Appelez-nous	-
2	56079		Locater, Panel			Immediately	$ 6.95
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	500227		Screw, No.8ab-16x7/16ph				$ 14.82
5	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
6	500281		Sticker		Appelez-nous	-
7	WP22001650		Hold-down Clip   (Replaces: 28835)			Immediately	$ 7.34
8	W10169313		Door Switch   (Replaces: Y62872)			Immediately	$ 29.18
9	500034		Seal,front Panel		Appelez-nous	-
10	500033W		Panel, Front		Appelez-nous	-
10	500033L		Panel, Front (almond)		Appelez-nous	-
10	500033H		Panel,front		Appelez-nous	-
11	WP27001200		Screw   (Replaces: 33562)				$ 6.91

    View Diagram in Separate Window       Print Part List
