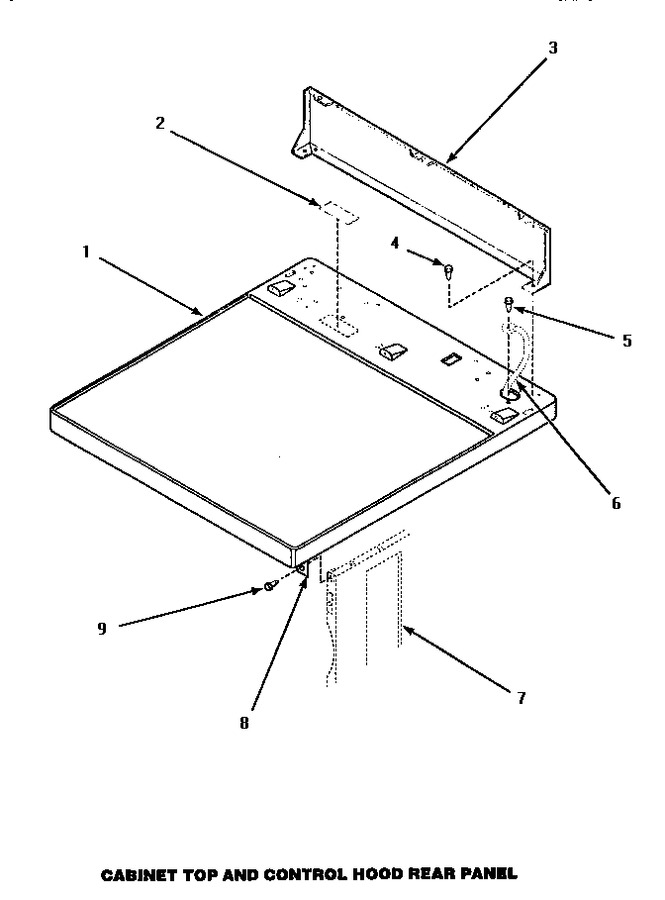

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	500085WP		Cabinet Top, White		Appelez-nous	-
1	500085LP		Panel,top-home		Appelez-nous	-
2	24903		Sticker,disconnect Pow		Appelez-nous	-
3	500343		Panel,back(home Hood)		Appelez-nous	-
4	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
5	WP3351614		Screw, 10-24x3/8 Hex   (Replaces: 20530)			Immediately	$ 6.26
6	Y00000000		See Note Ground Wire From Rear Bulkhead, Green		Appelez-nous	-
7	Y00000000		See Note Cabinet -- (see Cabinet Page)		Appelez-nous	-
8	500084		Bracket, L-top		Appelez-nous	-
9	WP27001200		Screw   (Replaces: 33562)				$ 6.91
