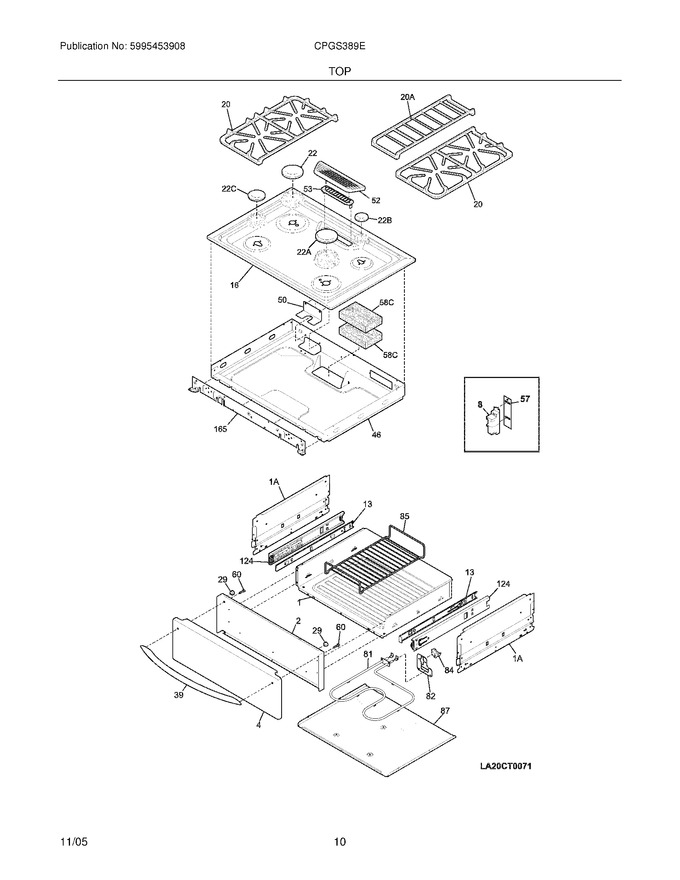

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304401		Drawer,body Assembly		Appelez-nous	-
2	318303901		Panel,drawer ,black ,inner		Appelez-nous	-
4	318298829		Panel,drawer ,stainless ,front   (Replaces: 318298810)				$ 210.92
13	318259507		Glide,warmer ,inner Rh   (Replaces: 318259501)			Immediately	$ 69.01
16	318327305		Maintop Assembly,black				$ 243.99
22	316219905		Cap,14k Burner ,black				$ 146.53
29	318147430		Bumper,(2)				$ 18.95
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219802)				$ 145.31
46	318291400		Box,burner		Appelez-nous	-
50	318328500		Cover,burner Box		Appelez-nous	-
52	318291126		Cover,flue ,black ,outer   (Replaces: 318291106)				$ 87.55
53	318308301		Cover,flue ,black		Appelez-nous	-
57	318295610		Panel,service		Appelez-nous	-
60	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
82	318304500		Bracket,element ,warmer Drawer				$ 11.29
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
87	318300102		Panel,warmer Drawer ,lower   (Replaces: 318300100)				$ 106.22
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)				$ 90.72
165	318227504		Plate,mounting		Appelez-nous	-
13A	318259506		Glide,warmer ,inner Lh   (Replaces: 318259500)				$ 69.01
1A	318300003		Panel,warmer Drawer ,side ,(2)   (Replaces: 318300000)				$ 56.13
20A	318221724		Grate,black ,center				$ 274.89
22A	316271904		Cap,17k Burner ,black				$ 206.11
22B	316206604		Cap,5k Burner ,black				$ 102.69
22C	316213505		Cap,9.5k Burner ,black				$ 102.30
58C	318285088		Insulation,flue ,(3)		Appelez-nous	-
F20	316424203		Grate,black ,(2)				$ 355.67
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
F81	318255301		Element,warmer Drawer   (Replaces: 318255300)				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318199748		Wiring Harness,drawer				$ 35.86
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	5303325173		Cap-plug		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
