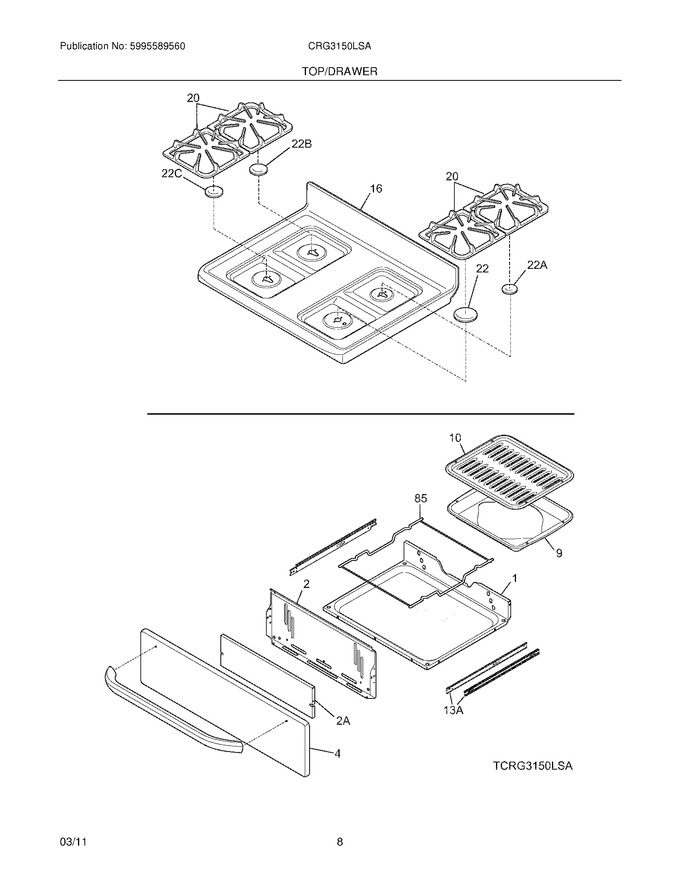

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316236401		Liner,low Broil				$ 119.96
4	316581602		Drawer Panel,assy ,stainless ,w/ Overlay		Appelez-nous	-
9	316081902		Pan,broiler ,slate Blue				$ 83.42
10	316082002		Insert,broiler Pan ,slate Blue				$ 81.14
16	316254509		Maintop,assembly ,black		Appelez-nous	-
20	316248508		Grate,black ,(4)		Appelez-nous	-
22	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 46.01
39	5304529996		Handle,oven Door ,black   (Replaces: 316456900)				$ 156.11
85	316115600		Rack-low Broil				$ 105.47
13A	316534200		Glide-low Broil, Inner				$ 42.75
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	316261904		Cap,12k Burner ,black				$ 46.36
22C	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
2A	316541500		Shield,broiler				$ 61.37
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
