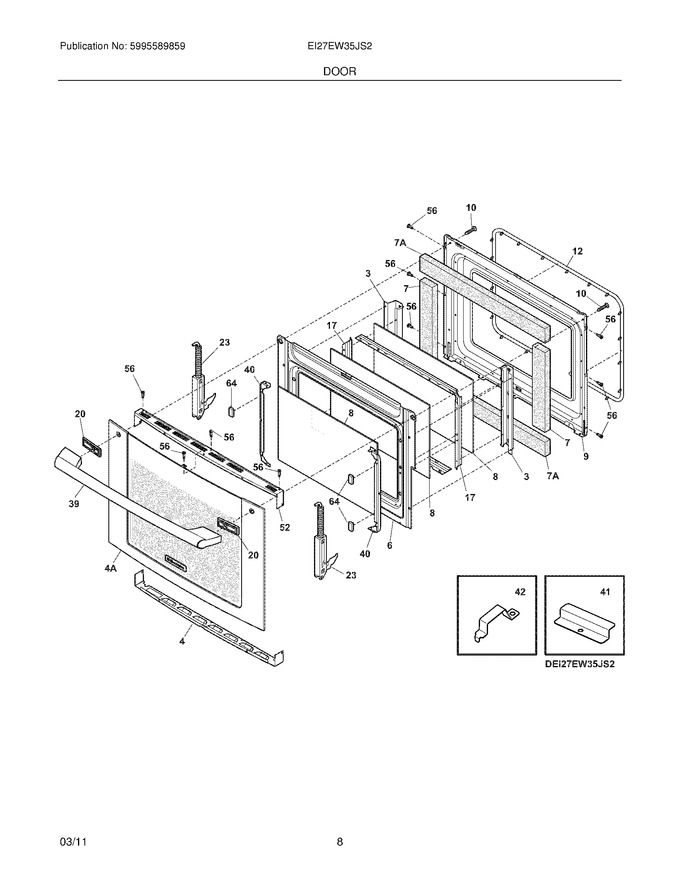

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318902200		Bracket,insulation ,(2)				$ 17.75
4	318901803		Trim,door ,black ,bottom		Appelez-nous	-
6	318901000		Deflector,door		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318900811		Liner,oven Door		Appelez-nous	-
10	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
12	318053136		Gasket,oven Door Seal				$ 124.16
17	318264701		Spacer,glass ,(2)		Appelez-nous	-
20	318902902		Spacer,handle ,grey ,(2)				$ 53.76
23	318586000		Hinge,oven Door				$ 175.67
39	241881303		Handle,door ,stainless		Appelez-nous	-
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318901601		Trim,door ,black ,upper		Appelez-nous	-
56	5304476599		Screw,8-18 X 3/8				$ 3.36
64	5304455945		Spacer,pad		Appelez-nous	-
4A	318299502		Glass Assy.,door ,black/stainless ,outer,w/trim & Label		Appelez-nous	-
7A	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
NI	318346060		Insulation,.125 Thick ,3.125 X 8 ,(2)		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41

    View Diagram in Separate Window       Print Part List
