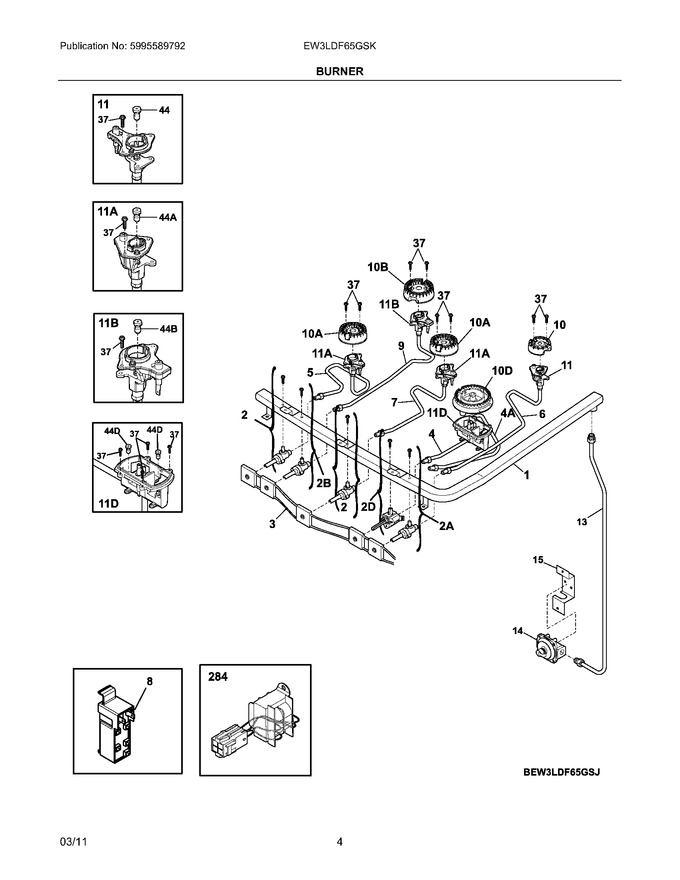

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303935355		Valve,12k Burner ,w/mtg Screw		Appelez-nous	-
15	316091600		Bracket-regulator				$ 73.56
37	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
284	316536100		Transformer			Immediately	$ 210.83
2B	5303935357		Valve,11k Burner ,w/mtg Screw		Appelez-nous	-
44B	316527512		Orifice,top Burner ,14k ,lp				$ 17.72
44D	316523510		Orifice,top Burner ,lp ,18k				$ 15.28
F1	316505200		Manifold		Appelez-nous	-
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10D	316525401		Burner,sealed ,dual ,18k				$ 187.54
F11	316540801		Ignitor/orifice Assy.,top Burner ,rear ,5k,w/holder		Appelez-nous	-
F11A	316527901		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11B	316543205		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11D	316525101		Ignitor/orifice Assy.,top Burner ,lp ,18k,w/holder				$ 200.87
F13	316545700		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings				$ 148.58
F14	316470700		Regulator,pressure		Appelez-nous	-
F2A	5303935353		Valve,5k Burner ,w/mtg Screw		Appelez-nous	-
F2D	316574905		Valve,top Burner ,18k				$ 119.12
F3	316580622		Harness-ignitor				$ 75.97
F4	316509000		Tube,burner ,right Front				$ 95.34
F44	316527505		Orifice,top Burner ,5k ,lp				$ 12.89
F44A	316527501		Orifice,top Burner ,9.5k				$ 18.43
F4A	316509100		Tube,burner ,right Front				$ 91.40
F5	316509300		Tube,burner ,rf & Lf ,(2)		Appelez-nous	-
F6	316509200		Tube,burner ,rr		Appelez-nous	-
F7	316509400		Tube,burner ,center				$ 117.28
F8	5304508269		Module,spark   (Replaces: 316262400)			Immediately	$ 105.46
F9	316526600		Tube,burner ,left Rear				$ 107.69
FNI	316526900		Harness,ignitor				$ 70.88
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316434900		Shield,valve ,bridge Burner				$ 11.55
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316443201		Bracket-support		Appelez-nous	-
