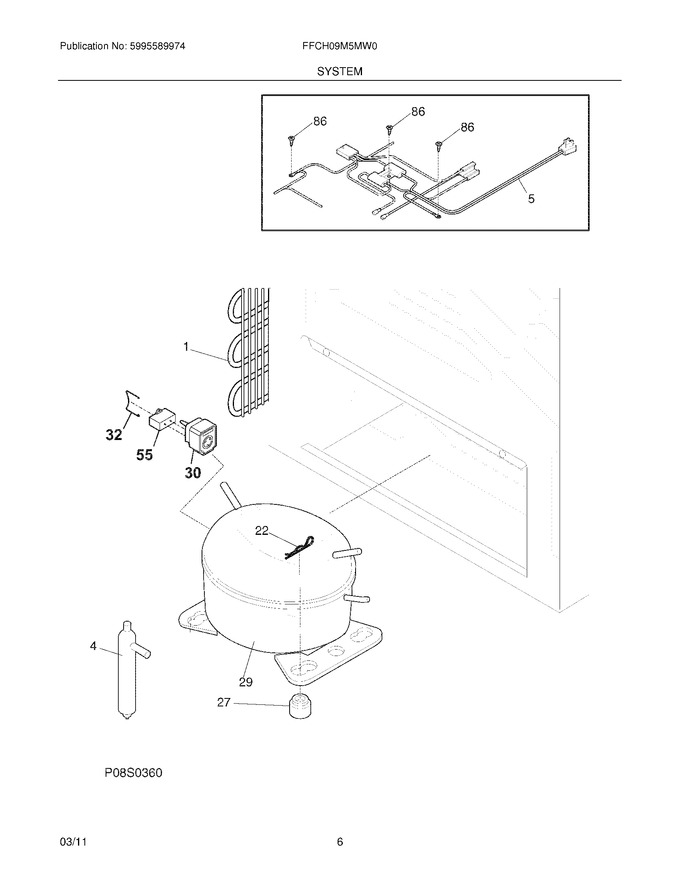

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303305677 | Drier-filter (Replaces: 216987501) |
|
Immediately | $ 31.67 | ||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 30 | 241941003 | Controller Tsd (Replaces: 297237701) |
|
$ 94.80 | |||||
| 32 | 241982601 | Clamp,elec Cont Mtg ,compressor |
|
$ 10.63 | |||||
| 55 | 297286812 | Capacitor-run,250 Va ,12 Mf (Replaces: 297286802) |
|
Immediately | $ 11.78 | ||||
| 86 | 216707801 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- | |||||
| F1 | 216977803 | Condenser . |
|
- | |||||
| F29 | 297352100 | Compressor Egx60hlc |
|
- | |||||
| F5 | 297034300 | Harness-main |
|
$ 68.52 |
