SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


10 - Wiring Schematic


11 - Wiring Diagram

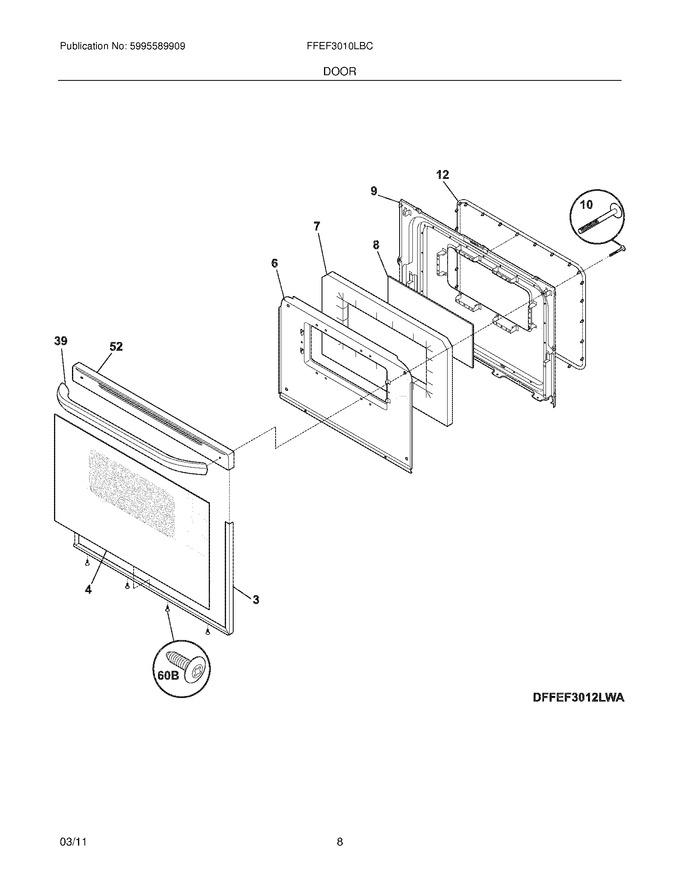

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935345		Trim Kit-door,3 Sided ,black ,w/tape				$ 53.34
4	5303935203		Glass,door Kit ,black ,outer ,w/ Foil Tape				$ 211.91
6	316222703		Shield,oven Door ,wool   (Replaces: 316222709)				$ 78.67
7	316236802		Insulation,oven Door				$ 41.63
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316230628		Liner,oven Door				$ 128.90
10	316278700		Screw,wafer Head ,10-14 X 1 3/8 ,handle Mtg			Immediately	$ 27.50
12	316239700		Seal,oven Door			Immediately	$ 152.43
39	316545300		Handle,door/drawer ,black				$ 137.92
52	316491201		Cap,door Trim ,black				$ 99.94
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
