SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

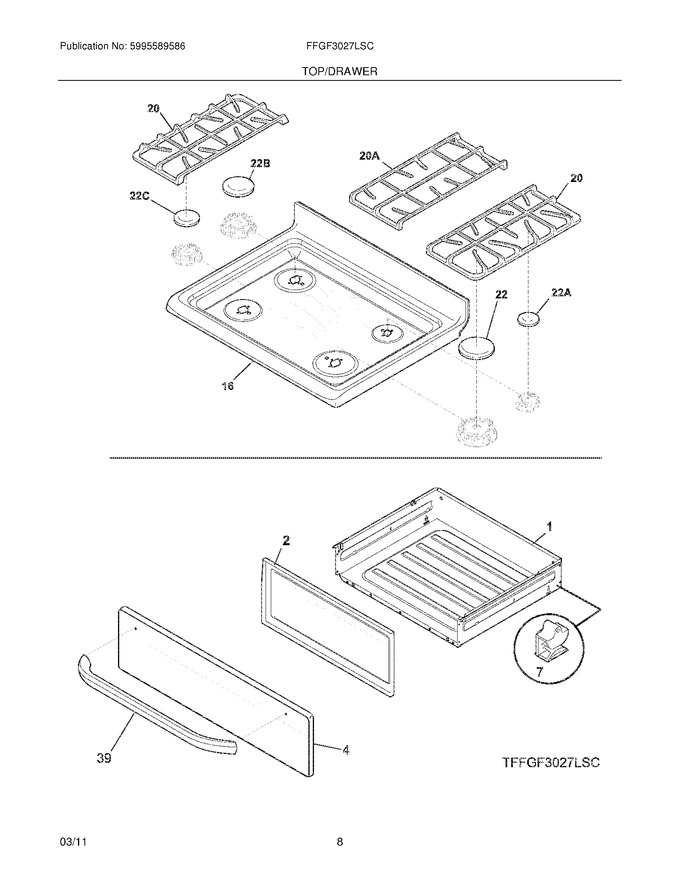

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	316581600		Drawer Panel,assy ,stainless ,w/ Overlay				$ 141.17
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316469601		Maintop Panel,black		Appelez-nous	-
20	316461303		Grate,side Burner ,black ,(2)		Appelez-nous	-
22	5304508468		Cap,burner ,17k ,black   (Replaces: 316262104)				$ 49.45
39	316558201		Handle,door ,stainless   (Replaces: 316558200)				$ 174.23
20A	316461403		Grate,center Burner ,black		Appelez-nous	-
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	316261904		Cap,12k Burner ,black				$ 46.36
22C	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
