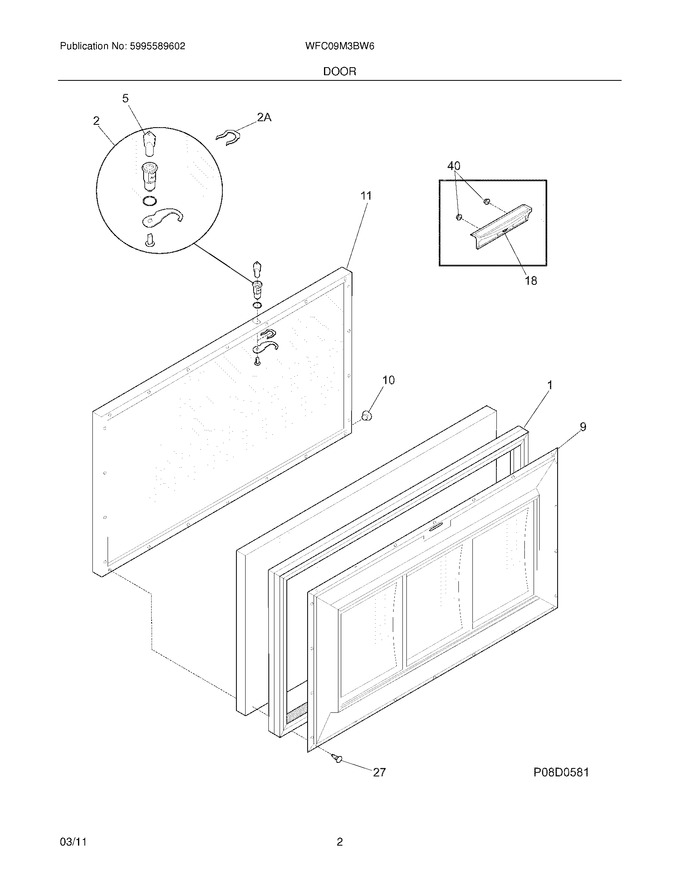

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481011		Gasket-door,white		Appelez-nous	-
2	297090200		Lock Assy				$ 27.04
5	297147700		Key,lock			Immediately	$ 7.57
9	216061800		Panel-inner Door/lid, White				$ 165.64
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216117910		Panel-outer Door/lid, White		Appelez-nous	-
18	216205006		Handle		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
2A	297090900		Clip,spring				$ 10.85
NI	5309948955		Clip-panel				$ 11.53
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
