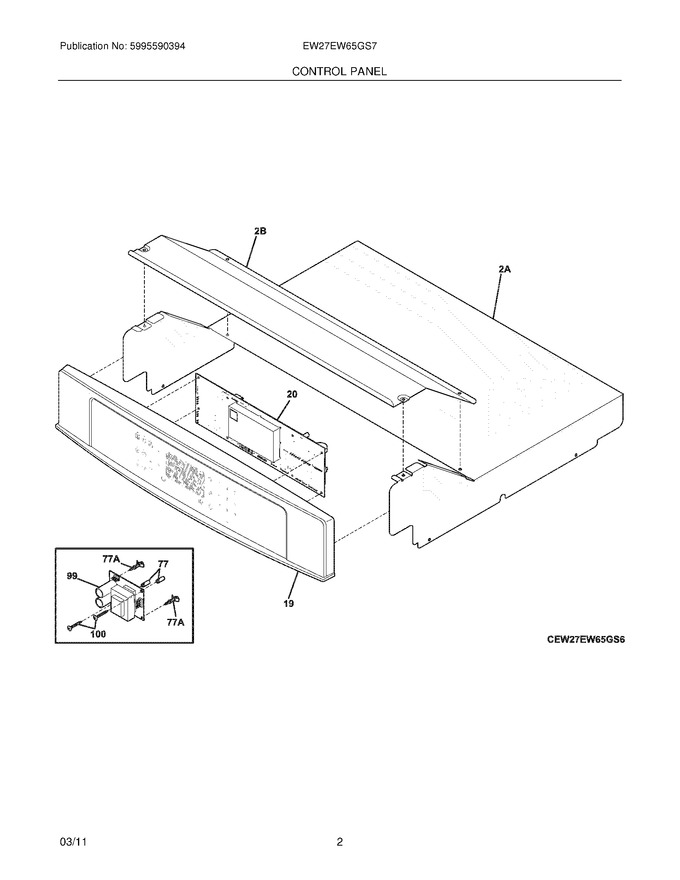

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318366215		Control Panel Assembly,glass ,black/stainless,w/touch & Trim		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
100	5304400427		Screw,6-20 X 1/2 ,(8)		Appelez-nous	-
2A	318257301		Shield,oven Top		Appelez-nous	-
2B	318260101		Cover,box		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F20	316576623		Controller,electronic ,es630				$ 468.25
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
FNI	318532113		Harness,wiring ,communication ,13 Connectors				$ 198.70
NI	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303297477		Screw,6-20 X 1 1/4				$ 15.17
