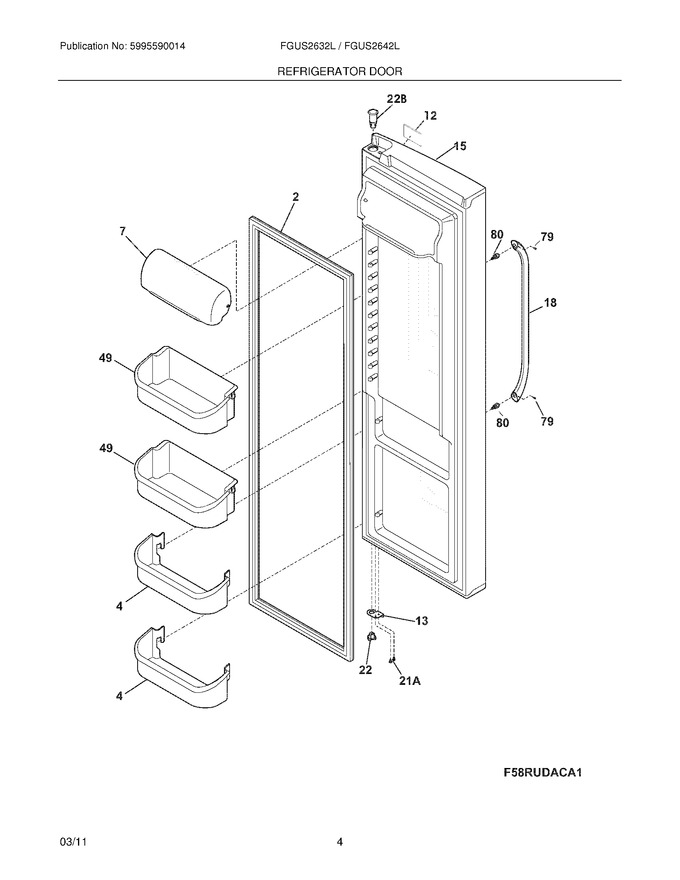

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 225.62 | ||||
| 4 | 240323002 | Bin-door,pseudo ,clear ,bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 6.90 | ||||
| 13 | 241990201 | Door Stop,black ,ref |
|
$ 21.27 | |||||
| 15 | 242038848 | Door-refr,black (smooth) ,complete Assy |
|
$ 377.82 | |||||
| 18 | 242084503 | Handle-door,black ,refr |
|
$ 163.81 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.09 | |||||
| 49 | 240356402 | Bin-door,gallon |
|
Immediately | $ 106.83 | ||||
| 79 | 218755405 | Screw-set,10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing,hinge ,top |
|
$ 12.76 | |||||
| NI | 241701902 | Screwdriver-3/32`` Balldriver |
|
$ 19.85 | |||||
| NI | 241601002 | Wrench,allen |
|
- |
