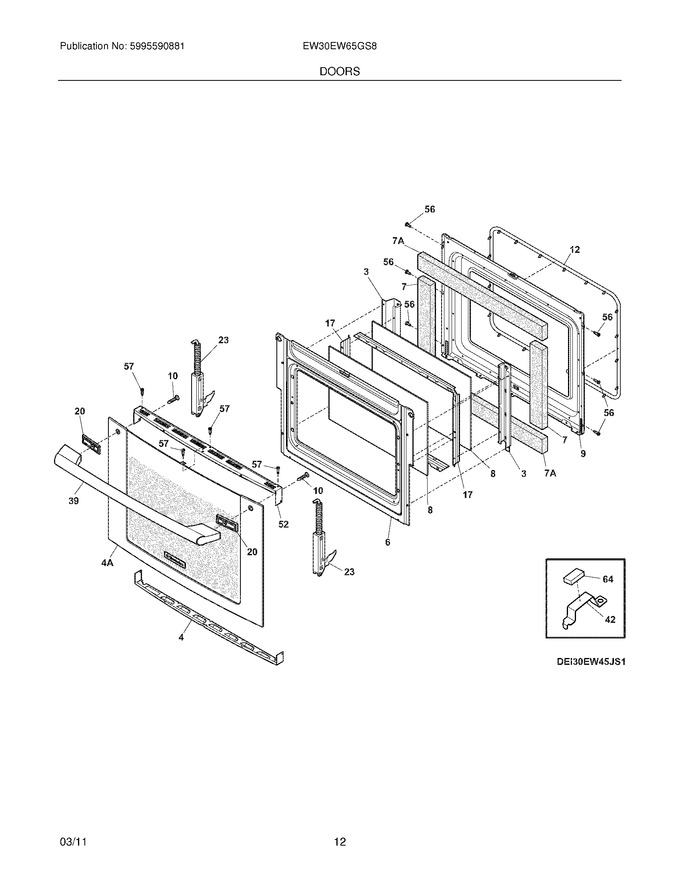

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318902200		Bracket,insulation ,(2)				$ 17.75
4	318904905		Trim,door ,lower				$ 40.06
6	318904201		Deflector,door		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318904005		Liner,door		Appelez-nous	-
10	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
12	318053132		Gasket,oven Door Seal   (Replaces: 318053131)			Immediately	$ 159.56
17	318264733		Spacer,glass ,(2)   (Replaces: 318264711)				$ 72.05
20	318902902		Spacer,handle ,grey ,(2)				$ 53.76
23	318586000		Hinge,oven Door				$ 175.67
39	241881302		Handle,door ,stainless				$ 226.24
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318904701		Trim,door ,black ,upper				$ 73.76
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
57	5304462581		Screw,8-32 X 5/16				$ 11.34
64	5304455945		Spacer,pad		Appelez-nous	-
4A	318261395		Glass Assy.,lower Door ,black/stainless				$ 643.81
4A	318261392		Glass Assy.,upper Door ,black/stainless				$ 643.02
7A	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 5303323168)				$ 31.36
NI	318346060		Insulation,.125 Thick ,3.125 X 8 ,(2)		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
