SELECT A DIAGRAM

01 - Cover Sheet

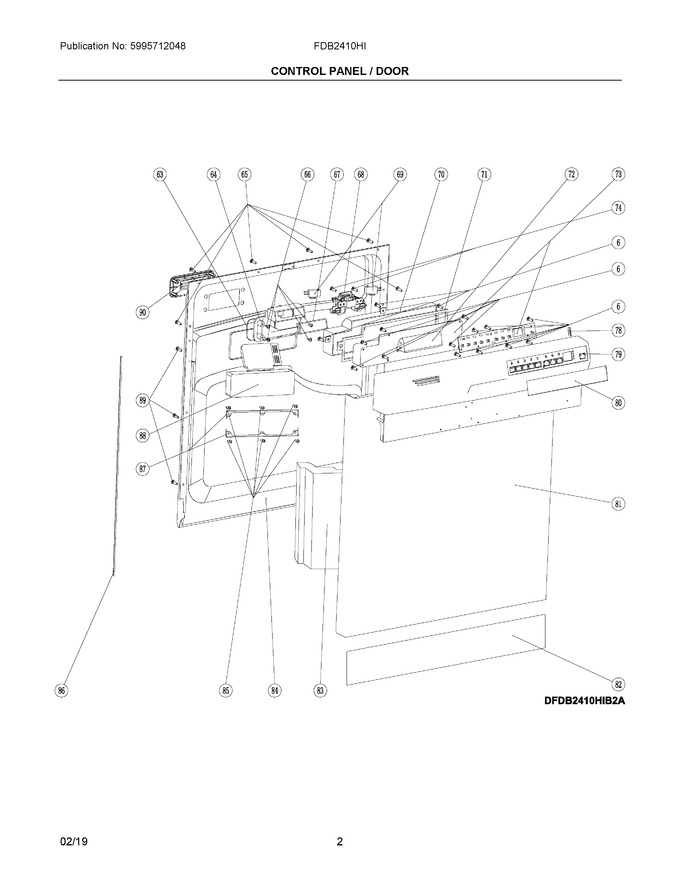

02 - Control Panel / Door


03 - Tub / Water Delivery


04 - Motor And Pump


05 - Racks / Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304482369		Screw, Rec Tapping, St 3.5 X 9		Appelez-nous	-
63	5304482423		Gasket, Vent, To Door Liner				$ 20.63
64	5304482424		Vent Assembly, Door				$ 32.03
65	5304482425		Screw, Rec Tap, St3.5 X 18, (6)				$ 4.25
66	5304482426		Screw, Re Pan Hd Tap, St4 X 12, (4)		Appelez-nous	-
67	5304482427		Gasket, Vent, To Console		Appelez-nous	-
68	5304535183		Latch, Door   (Replaces: 5304482428)			Immediately	$ 16.22
69	5304483463		Switch, Door Latch, (2), Micro   (Replaces: 5304482429)			Immediately	$ 59.28
70	5304482430		Cover, Control Board		Appelez-nous	-
71	5304482431		Seal, Contol Cover		Appelez-nous	-
72	5304482433		Cover, Handle, Black				$ 16.22
73	5304480587		Control Assembly, Complete, W/display Brd				$ 259.08
74	5304482434		Screw, Rec Tap, St3.5 X 12, (2)		Appelez-nous	-
78	5304482435		Lens Cover, Led Lights				$ 9.19
79	5304482437		Console Assembly, Black				$ 100.26
80	5304482439		Insert, Console Panel, Black				$ 16.22
81	5304482441		Door, Outer, Black		Appelez-nous	-
82	5304482443		Insulation, Door Inner, Sound Proof		Appelez-nous	-
83	5304482444		Insulation, Door Inner, Polystyrene		Appelez-nous	-
84	5304482445		Liner, Door, Inner				$ 275.16
85	5304482446		Screw, Rec Tap, M3.9 X 12, (6)		Appelez-nous	-
86	5304482448		Guard, Door, Black, Side, (2)				$ 10.97
87	5304482449		Bracket, Dispenser Mtg., (2)		Appelez-nous	-
88	5304509278		Dispenser, Assembly   (Replaces: 5304482450)				$ 231.58
89	5304482451		Screw, Rec Tap, St3.5 X 13, (6)				$ 4.94
90	5304482452		Cover, Door Vent				$ 19.85

    View Diagram in Separate Window       Print Part List
