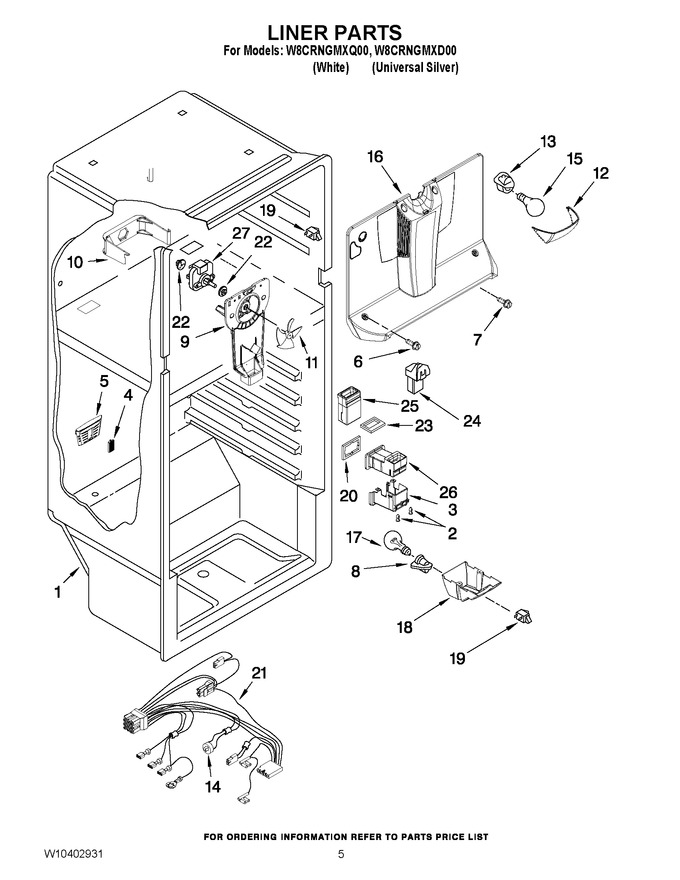

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	2256983		Rivet				$ 38.78
3	2252837		Cover, Air Diffuser				$ 189.10
4	W10311524		Air Filter   (Replaces: W10315189)			Immediately	$ 12.91
5	W10287890		Grille, Air Filter		Appelez-nous	-
6	WP489474		Screw   (Replaces: 2262178)			Immediately	$ 7.17
7	W10276642		Screw   (Replaces: 8533904)				$ 5.49
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 99.14
9	W10353615		Fan Support Bracket		Appelez-nous	-
10	2263290		Retainer, Fan Motor		Appelez-nous	-
11	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 39.07
12	2263272		Light Lens		Appelez-nous	-
13	W10545295		Socket, Light   (Replaces: 2263413)		Appelez-nous	-
14	WP2211224		Defrost, Bi-metal   (Replaces: 2211224)				$ 103.51
15	W10888319		Light Bulb   (Replaces: R-31244)			Immediately	$ 12.97
16	2328458		Cover, Evaporator		Appelez-nous	-
17	8501662		Light Bulb		Appelez-nous	-
18	2325530		Light Lens		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 33.51
20	W10129686		Gasket, Air Diffuser Body				$ 12.31
21	W10324640		Wiring, Freezer (includes Item 14)		Appelez-nous	-
22	WP2264462		Grommet, Motor   (Replaces: 2264462)			Immediately	$ 39.57
23	2263075		Gasket, Air Duct				$ 85.86
24	2316186		Hood And Foil Assembly				$ 40.20
25	2252834		Air Duct Assembly		Appelez-nous	-
26	2252831		Air Diffuser				$ 91.83
27	WPW10188389		Evaporator Fan Motor   (Replaces: W10188389)			Immediately	$ 69.15
