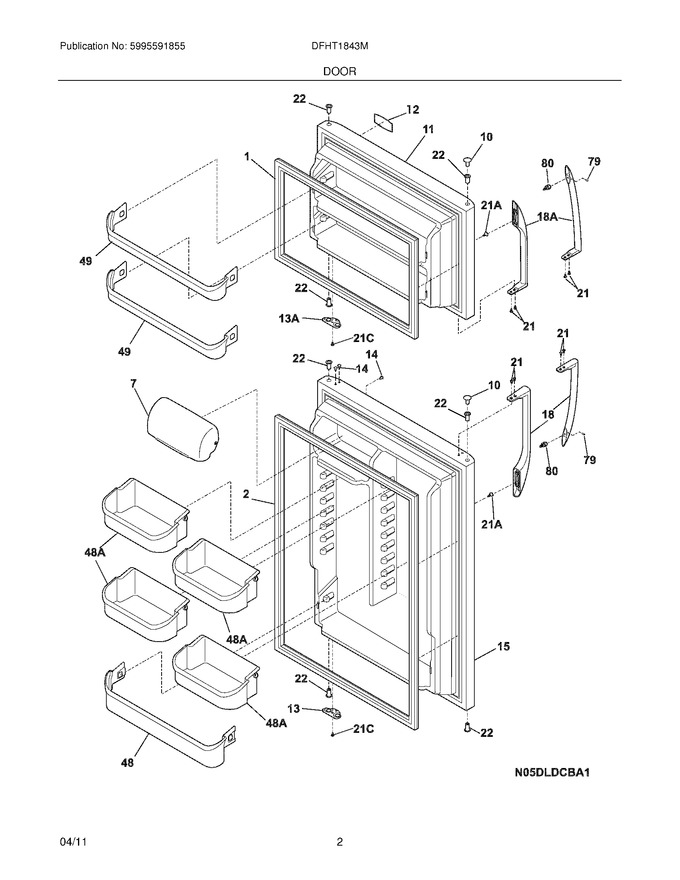

03 - Door


05 - Cabinet


07 - Shelves


09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear			Immediately	$ 80.80
11	241623303		Door-frzr,stainless ,complete Assy				$ 481.49
12	242016301		Nameplate				$ 4.26
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
15	241623424		Door,refr ,stainless Steel ,rh				$ 481.86
18	242075501		Handle-door,stainless ,refr-rh/frzr-lh   (Replaces: 242075202)				$ 233.58
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
18A	242075501		Handle-door,stainless ,refr-lh/frzr-rh   (Replaces: 242075201)				$ 233.58
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door,gallon   (Replaces: 240338202)			Immediately	$ 79.97
F1	241872509		Gasket-frzr Door,black ,magnetic			Immediately	$ 164.15
F2	241872512		Gasket-refr Door,black ,magnetic			Immediately	$ 165.39
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
