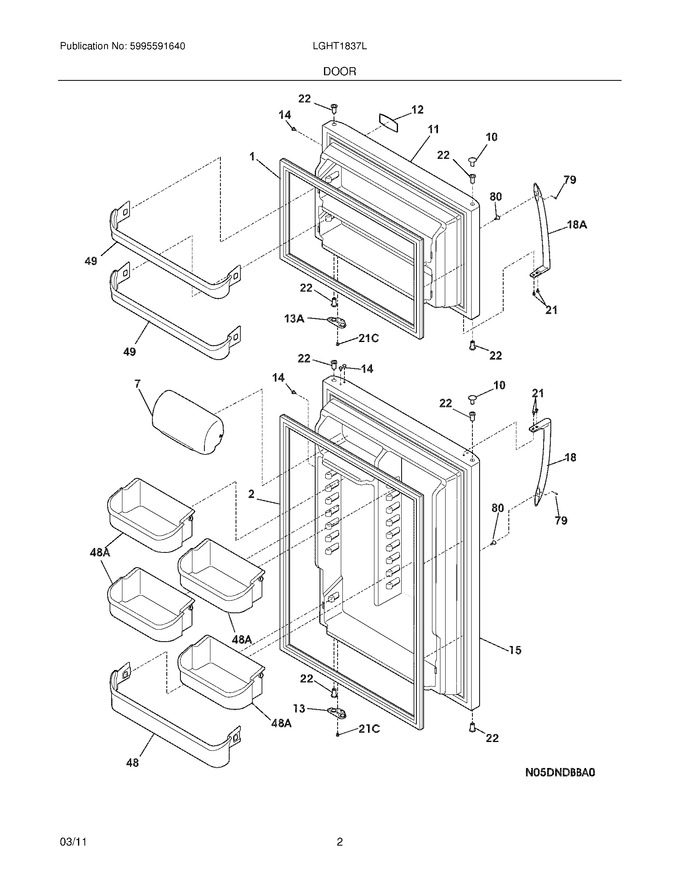

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872509		Gasket-frzr Door,black ,magnetic			Immediately	$ 164.15
2	241872512		Gasket-refr Door,black ,magnetic			Immediately	$ 165.39
7	240338313		Door,dairy ,clear			Immediately	$ 80.80
10	240381303		Plug-button,black ,hinge Brg Hole				$ 69.77
11	240437409		Door-frzr,black ,complete Assy				$ 387.71
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
14	240494003		Plug-button,black				$ 18.20
15	240438624		Door-refr,black ,complete Assy				$ 388.76
18	242084806		Handle-door,black ,refr-rh/frzr-lh		Appelez-nous	-
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
79	218755405		Screw-set,10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
18A	242084803		Handle-door,black ,refr-lh/frzr-rh		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door,gallon			Immediately	$ 79.97
NI	241601001		Wrench,allen		Appelez-nous	-
