SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

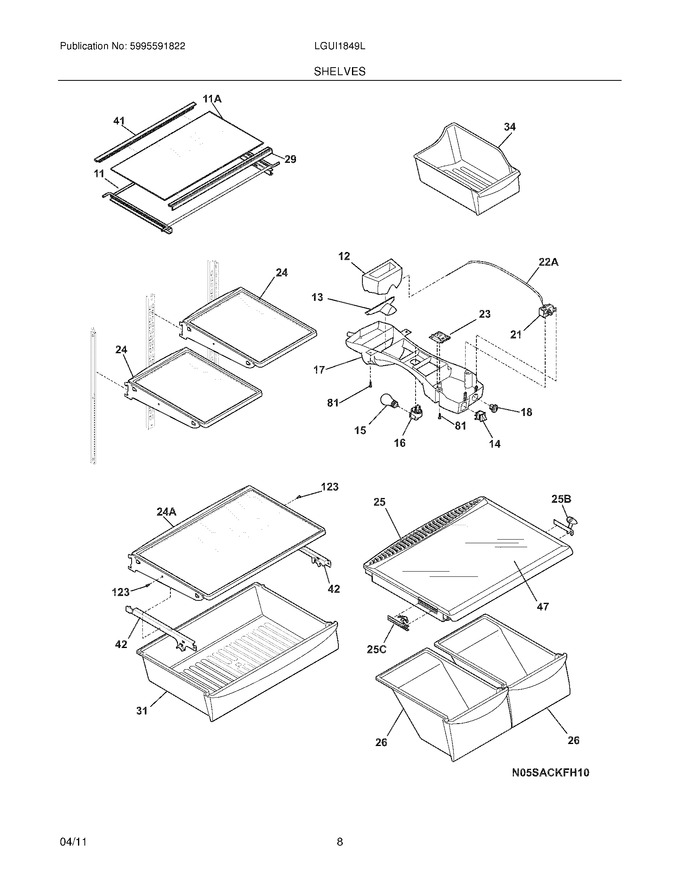

07 - Shelves


09 - System


11 - Ice Maker


14 - Wiring Schematic


15 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087802		Frame-shelf,full Width				$ 137.92
12	241542001		Diffuser,air ,top			Immediately	$ 74.42
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
17	240352703		Control Box				$ 53.72
18	240360801		Knob-temp Control				$ 43.95
24	241616607		Shelf-``spill-safe``,cantilever ,half Width,fixed				$ 146.81
25	240364787		Cover-crisper Pan			Immediately	$ 120.98
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 148.35
29	242088001		Trim-shelf,front		Appelez-nous	-
31	242108901		Pan-meat		Appelez-nous	-
34	240385201		Container,ice Bin				$ 97.83
41	242088201		Trim-shelf,rear		Appelez-nous	-
42	242089802		Track,meat Pan Hanger ,lh				$ 18.74
42	242089801		Track,meat Pan Hanger ,rh				$ 20.08
47	240350608		Insert-pan Cover,23.82`` X 15.50`` ,glass			Immediately	$ 45.50
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
11A	242087902		Glass-shelf,full Shelf				$ 122.43
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
24A	241712304		Shelf-``spill-safe``,cantilever Fixe				$ 227.17
25B	241613501		Control-humidity,rh			Immediately	$ 12.05
25C	241613502		Control-humidity,lh				$ 47.78
F14	241554901		Switch-light/lamp				$ 70.88
F15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
F16	241559801		Socket-light				$ 72.68
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	242011003		Control-defrost,adaptive Timer ,pc Board		Appelez-nous	-
FNI	242081702		Wiring Harness,control Box		Appelez-nous	-
NI	241768601		Support-crspr Cover				$ 19.13
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 17.01
NI	240568606		Seal   (Replaces: 240568607)				$ 12.76
NI	242028580		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
